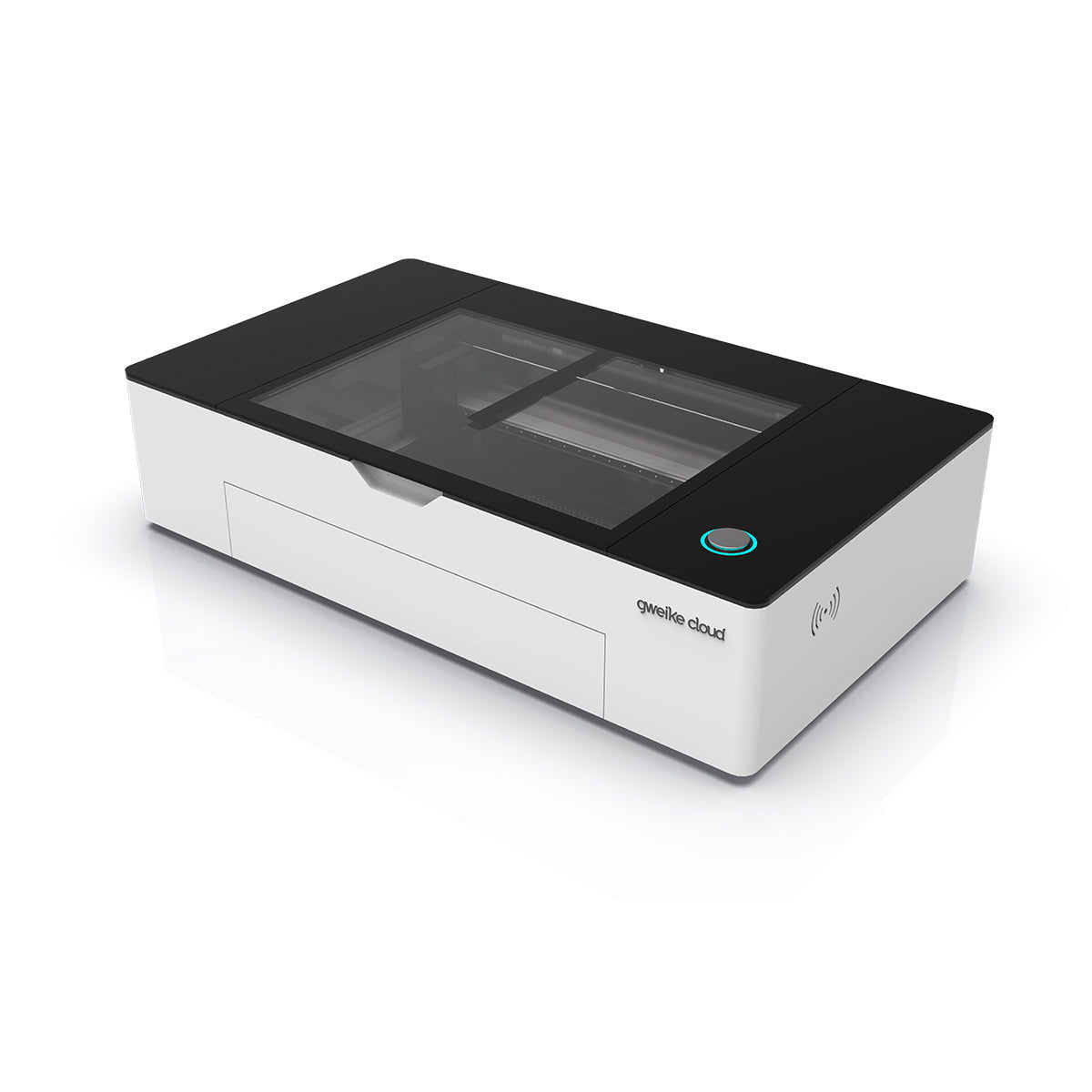

Gweikecloud – CO₂-Laserschneider & -gravierer (50 W), Basic

Gweikecloud – CO₂-Laserschneider & -gravierer (50 W), Basic

Normaler Preis $2,600.00
Verkaufspreis $2,600.00 Normaler Preis
Sale Ausverkauft
Product Parameters
×
Laser Power CO2 laser 50W
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Processing Area 20.08" (510mm)*11.8" (300mm)
Maxinum working height 20"(51mm)
Rotary Engraving diameter 30mm-74mm
Rotary Engraving Length ≤245mm
Camera support
Weight 42.6kg

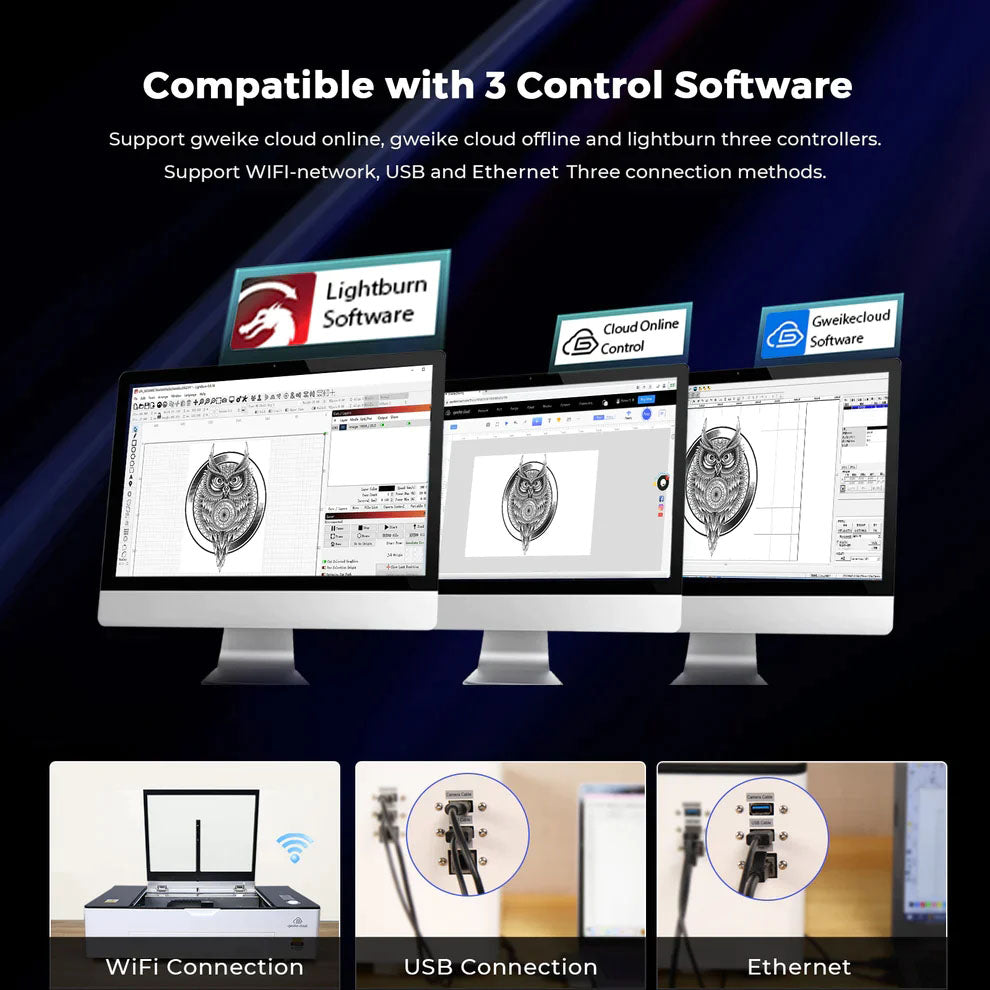

software Gweikecloud Web Based,Gweikecloud Offline, Lightburn
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Power Supply AC 110-220V±10%,50-60Hz
Gross Power 550W
Noise Rating ≤70dB
Max. Carving Speed 600mm/s
Precision 0.001” (0.025mm)
Laser Tube Life 10000 hours
Payments: PayPal Visa Mastercard American Express Discover JCB Klarna
Der Versand wird an der Kasse berechnet.
  • 5MP-Kamera, Vorschaudesign und visuelle Positionierung auf dem Material.
  • Leiser Ventilator und Wasserpumpe, Dezibel ≤ 70 dB.
  • Live-Vorschau und Bild-Extraktion.
  • 100 % vorinstallierte 1-Schritt-Schnellmontage.
  • WLAN/USB/Internet-Kabelanschluss.
  • Lightburn/Gweikecloud Online/Gweike Offline-Steuerung.
  • Alle Module und Hauptkomponenten sind aus hochfestem Metall gefertigt.
Vollständige Details anzeigen

Gweike Cloud Web APP(provided)

Free Online Design library (only for web app)

If you don’t have professional drawing design experience or you don’t have time to design drawings, Gweikecloud provides massive materials for free download or you can purchase online

Learn more
  • Control Mother Board Upgrade

    The machine control mother board can be upgraded, constantly upgraded with new features for free.

  • Auto-alarm

    When there are problems during machine operation, the cloud control software will show a prompt.

Bringen Sie Glanz in Ihre Kreation mit Materialien für Gweike Cloud

Machen Sie Acryl, Holz, Gummi, Leder, Metalle und vieles mehr zu Kunst
  • Sperrholz
  • Acryl
  • Leder
  • Beschichtungsmaterial
  • Papier
  • Stein
  • Lebensmittel
  • Gummi

Material: MDF

Leistung: 80 %

Geschwindigkeit: 600 mm/s

Industrielles Rahmendesign

Einfach zu fokussieren, präzise und schnell

Einfach zu fokussieren, präzise und schnell

Abluftreinigung

Die Windgeschwindigkeit wird deutlich verbessert und das Windvolumen ist größer. Rauch und Abgase lassen sich leichter entfernen. Lösen Sie effektiv die durch den Produktionsprozess verursachte Gasretention.

Geräuschunterdrückung

Beim normalen Drucken hat Gweike Cloud einen durchschnittlichen Geräuschpegel von etwa 70 dB (A). Ausgestattet mit einem viel leiseren Lüfter. Die Geschwindigkeit kann automatisch an die Echtzeit-Temperatur angepasst werden, wodurch der Geräuschpegel um ca. 16 dB (A) [3] verringert wird, sodass Sie sich richtig auf die Herstellung konzentrieren können.

What Other Advantages?

3D-Gravur

Das Gerät kann auf kugelförmigen, schrägen und gekrümmten Oberflächen und auf Objekten verschiedener Höhe gravieren. Es kann 3D-Bilder auf Diamanten, Holz, Acryl und vielem mehr erstellen.

  • 3D-Gravur
  • Design mit Zufuhr an der Geräteunterseite
  • Cloud-Betrieb online
  • Online-Designkatalog

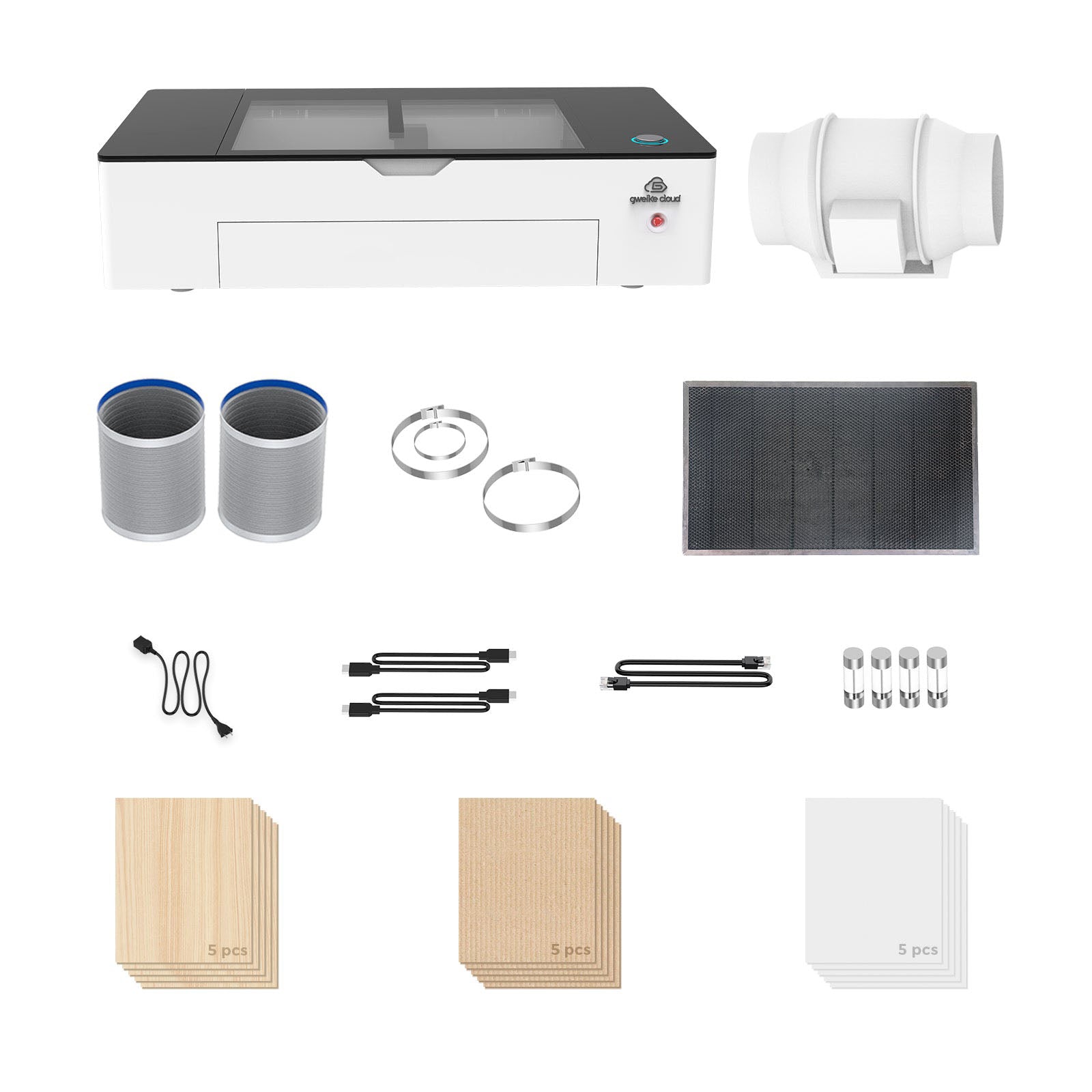

Details- What Are Included

Technische Daten – Zusammenfassung

  • Technische Daten
  • Gweike Cloud vs. Glowforge
  • Schnitt- und Gravurmaterial
  • Lieferzeit
Lasersystem

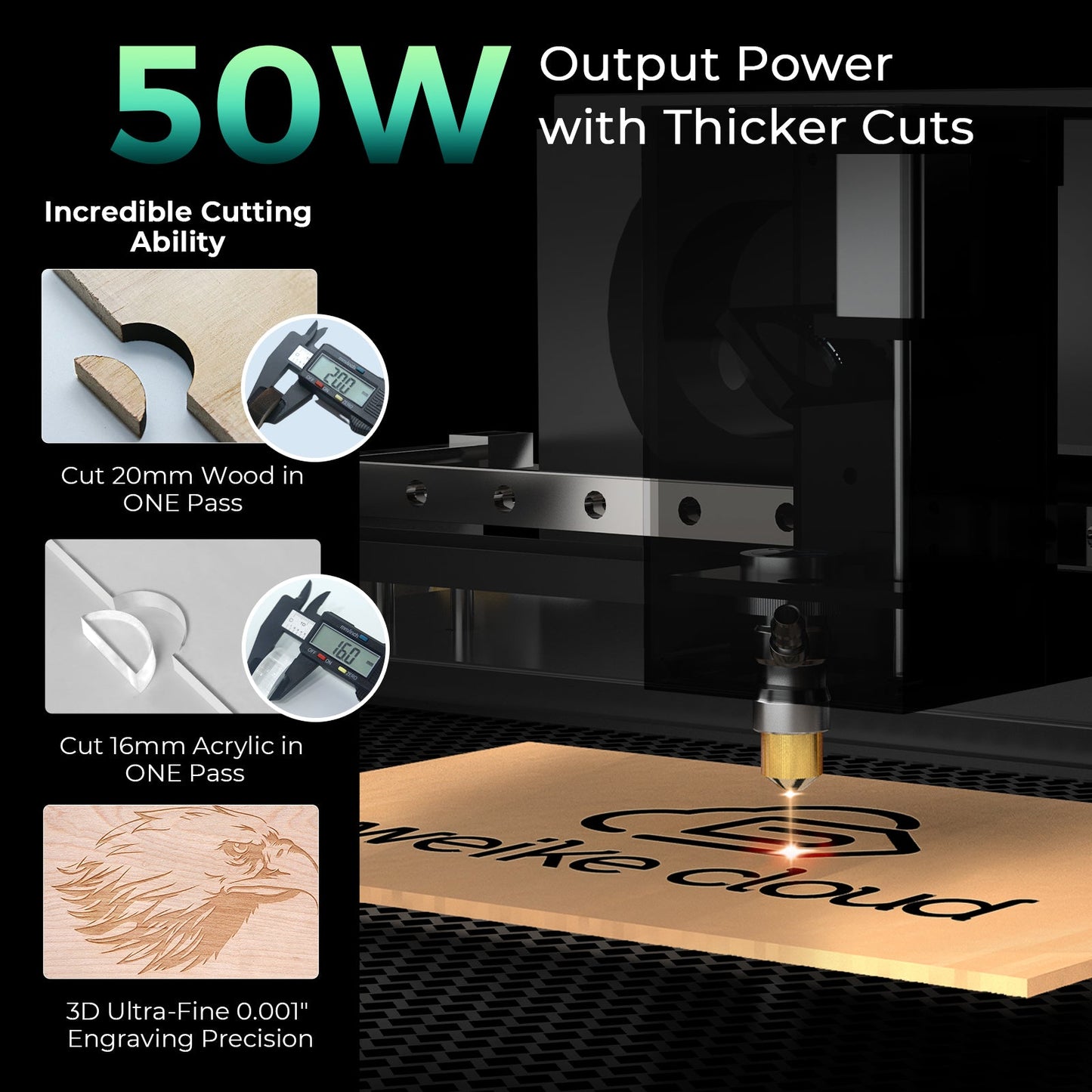

Laserleistung 50W

Laser-Modell CO₂-Glaslaserrohr

Lebensdauer 10.000 h

Schutzeinrichtung Klasse I (FDA-zertifiziert)


Arbeitsbereich

Fläche des Arbeitstisches 20,08" (510 mm) x 11,8" (300 mm)

Max. Werkstückhöhe (ohne Wabeneinsatz) 2''(51mm)

Oberfläche des Arbeitstisches Schwarz (Spezielle Oberflächenbehandlungstechnik hilft, Brandflecken oder Verfärbungen zu vermeiden)


Materialbearbeitung

Max. Schnitttiefe 0,59''(15 mm) Lindenholz

Max. Schnitzgeschwindigkeit 600mm/s

Schnitzgenauigkeit 0,001" (0,025 mm)

Geräuschpegel ≤70dB


KI-Kamerainformationen

Fokusmodus KI Visueller AF/Materialerkennungs-KI/Materialeinstellungs-AF

Kamera Hochauflösende Ultraweitwinkel-Kamera

Anzahl der Pixel (effektiv) 5MP

Sichtbarer Bereich 19,29'' (490 mm) x 11,42'' (290 mm)

Positionierung KI Visuelle Positionierung Fehlerbereich ≤ 2mm


Softwareanforderungen

Betriebssysteme Windows/macOS

Steuerungssoftware Gweikecloud Webbasiert, Gweikecloud Offline, Lightburn

Verbindung/Übertragung WLAN, USB, Ethernet

Unterstützte Dateitypen SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2 usw.

Design-Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw usw.


Umgebungsanforderungen

Wechselstrom 110–220 V ± 10 %, 50–60 Hz

Energieverbrauch (ohne Lüfter) 550W

Außerbetriebstemperatur 0~45°C

Relative Luftfeuchtigkeit 5~90°C

Betriebsumgebungstemperatur 0~35°C


Gewicht und Abmessungen

Bearbeitungsfläche 510 mm (20,08") x 300 mm (11,8")

Maschinenabmessungen 38,2" x 22,2" x 9,2" (970 mm x 565 mm x 234,5 mm)

Gewicht 42,6kg


Unterstütztes Zubehör

Kameras: 5 MP ultra-Weitwinkelkamera & Makro √

Voller Autofokus √

Wasserrückkühler √

Duale, hocheffiziente integrierte LED-Streifen√
