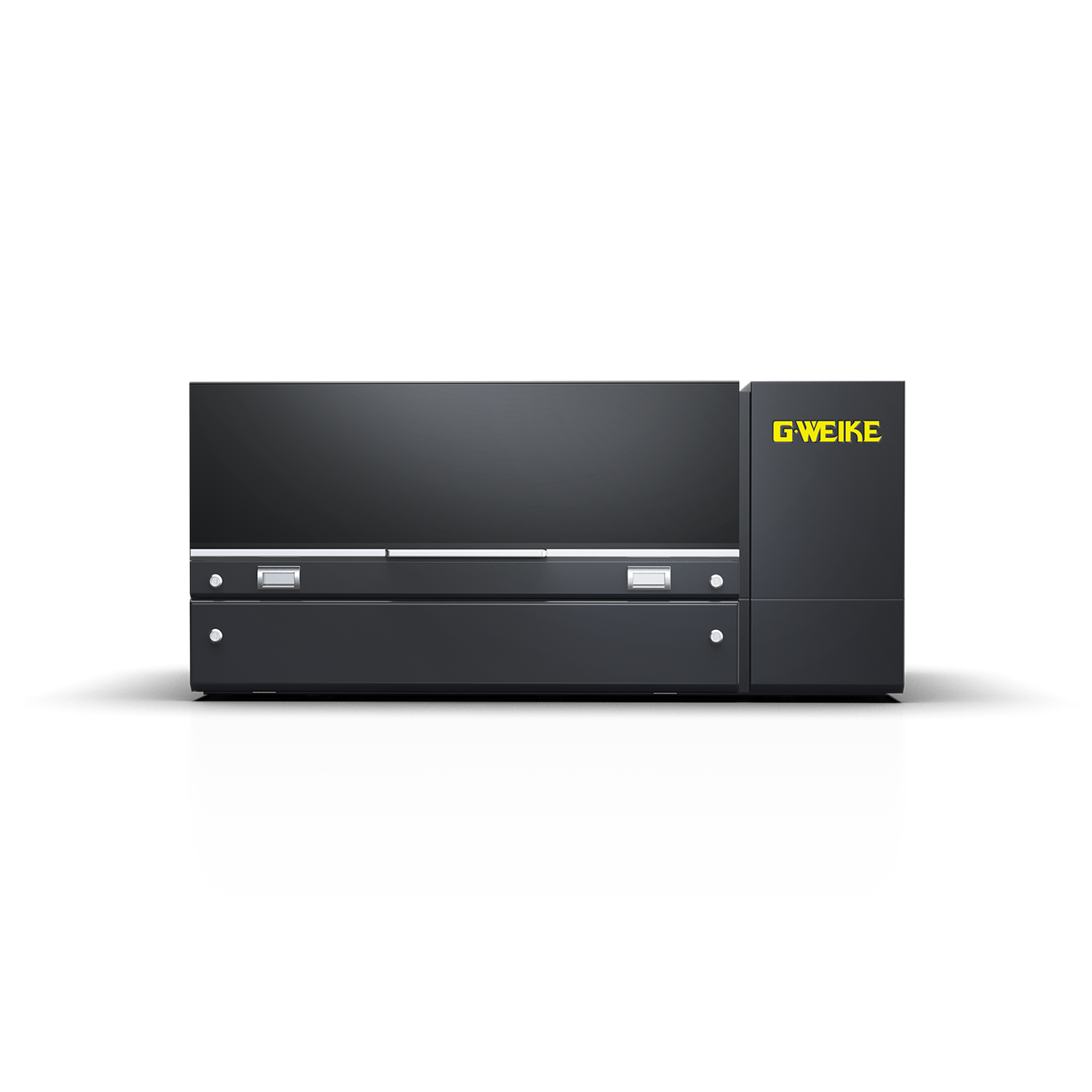

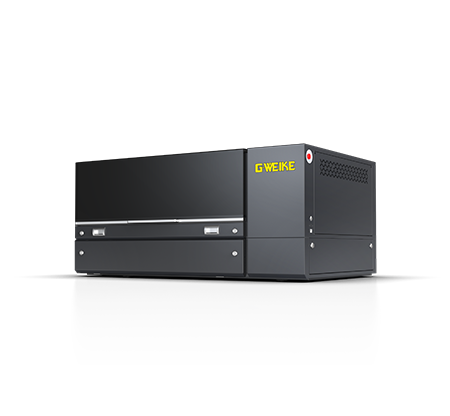

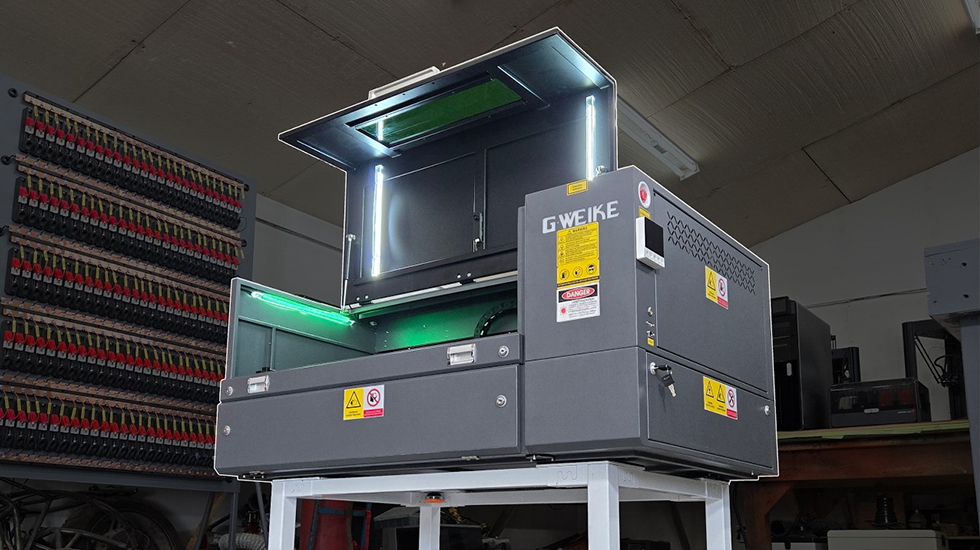

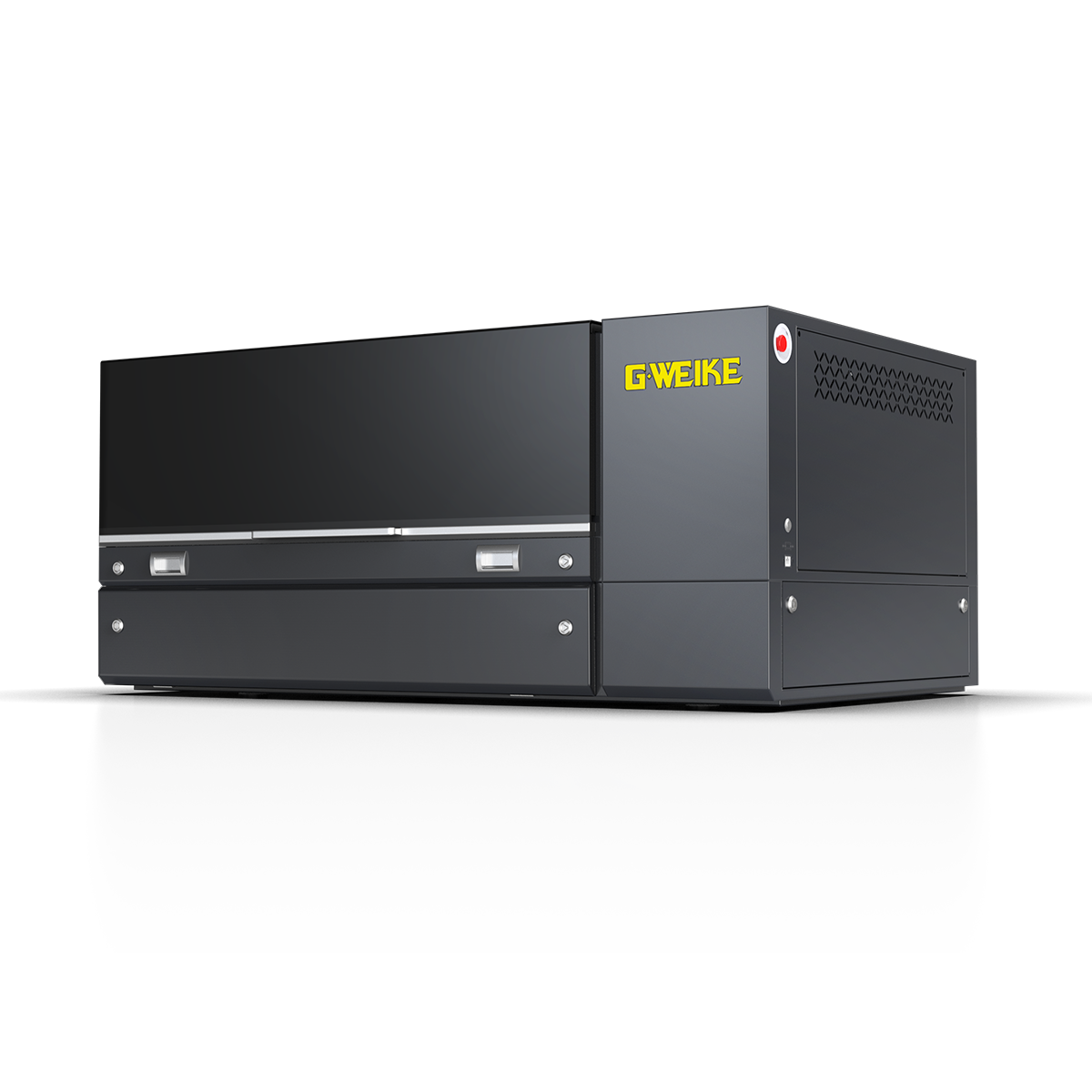

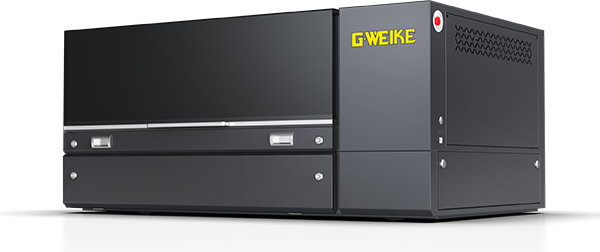

GWEIKE MCORE Desktop 400W Fiber & 80W CO₂ Dual Laser Cutter
GWEIKE MCORE Desktop 400W Fiber & 80W CO₂ Dual Laser Cutter
Normaler Preis
€6.159,00
Verkaufspreis
€6.159,00
Normaler Preis
€8.999,00
Grundpreis
pro
Payments:
Verfügbarkeit für Abholungen konnte nicht geladen werden
Ideas Unleashed Profits Unlocked
Master the Metal & Non-Metal. Multiply the Profit.

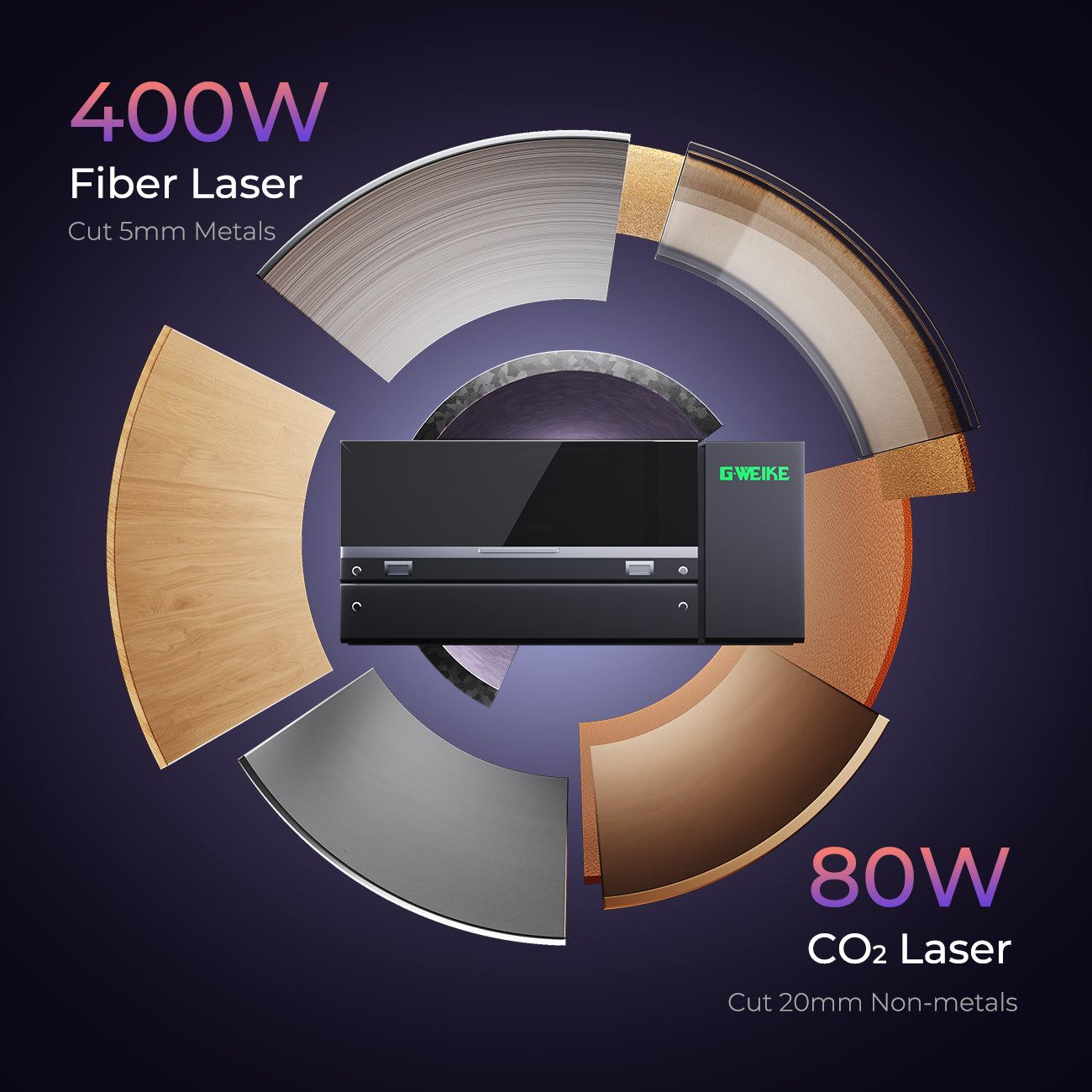

400W Fiber Laser +80W CO₂ Laser
Custom Sign Shop
We outsourced all metal letters, watching profits disappear. Bringing cutting in-house with the MCore changed that. Now we handle metal and acrylic seamlessly, boosting our margin from 20% to 60%. We work for ourselves now.
Maker Studio
Our revenue surpassed $30,000 monthly by using the MCore as a single hub for metal, wood, and acrylic. Its reliable, streamlined workflow allows us to confidently accept large batch e-commerce orders.

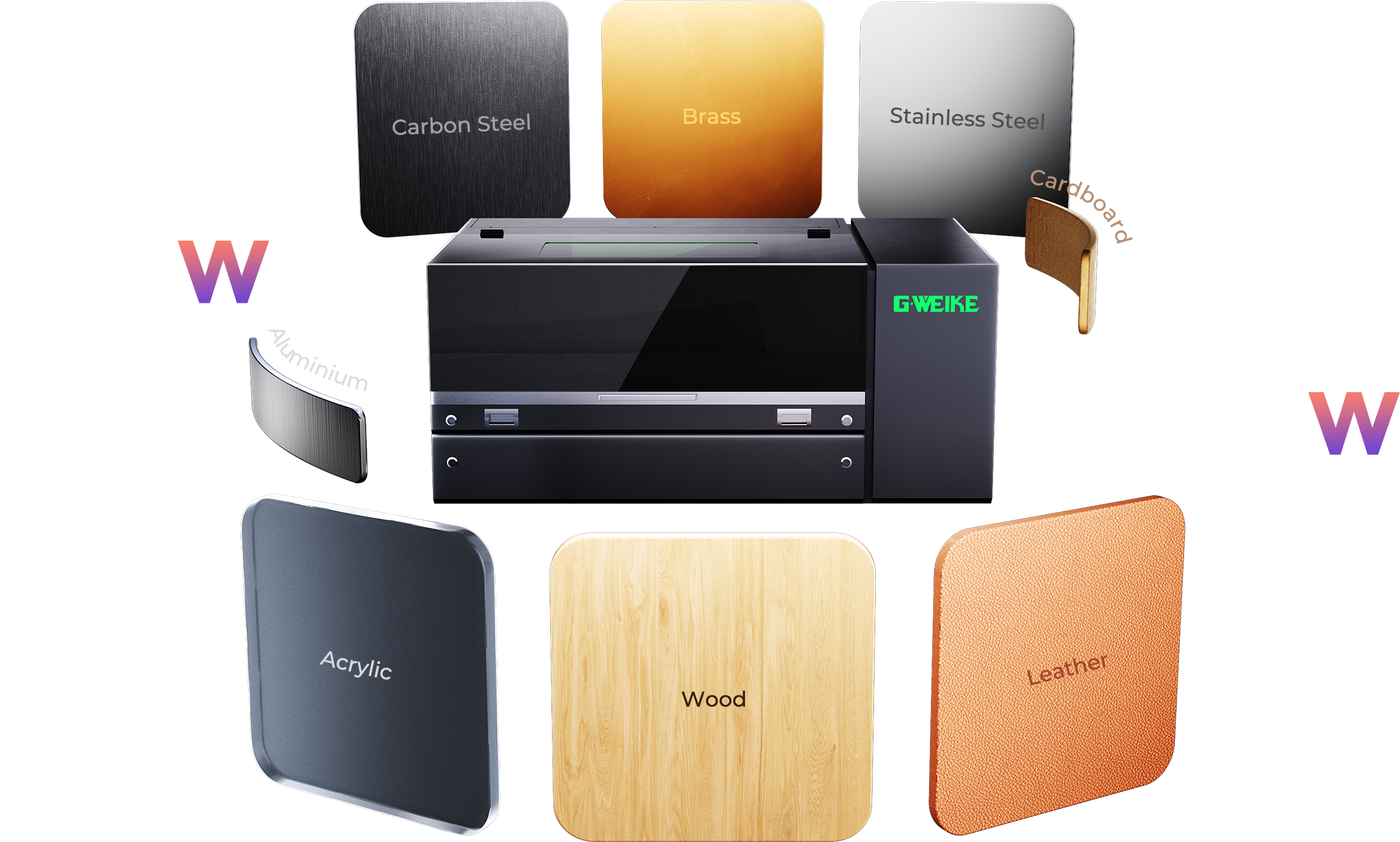

No Material Limits. Just Cuts

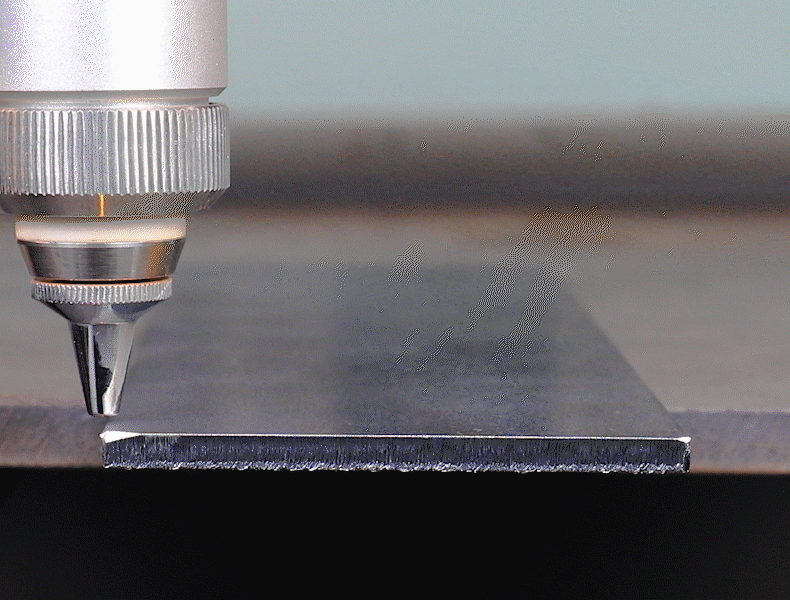

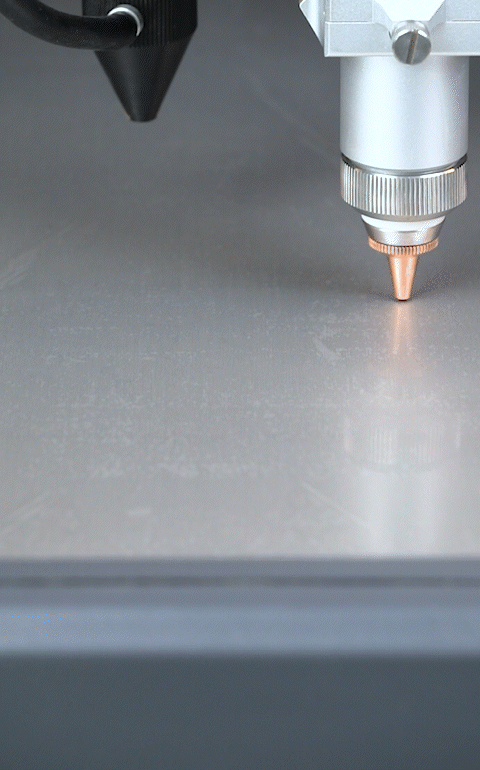

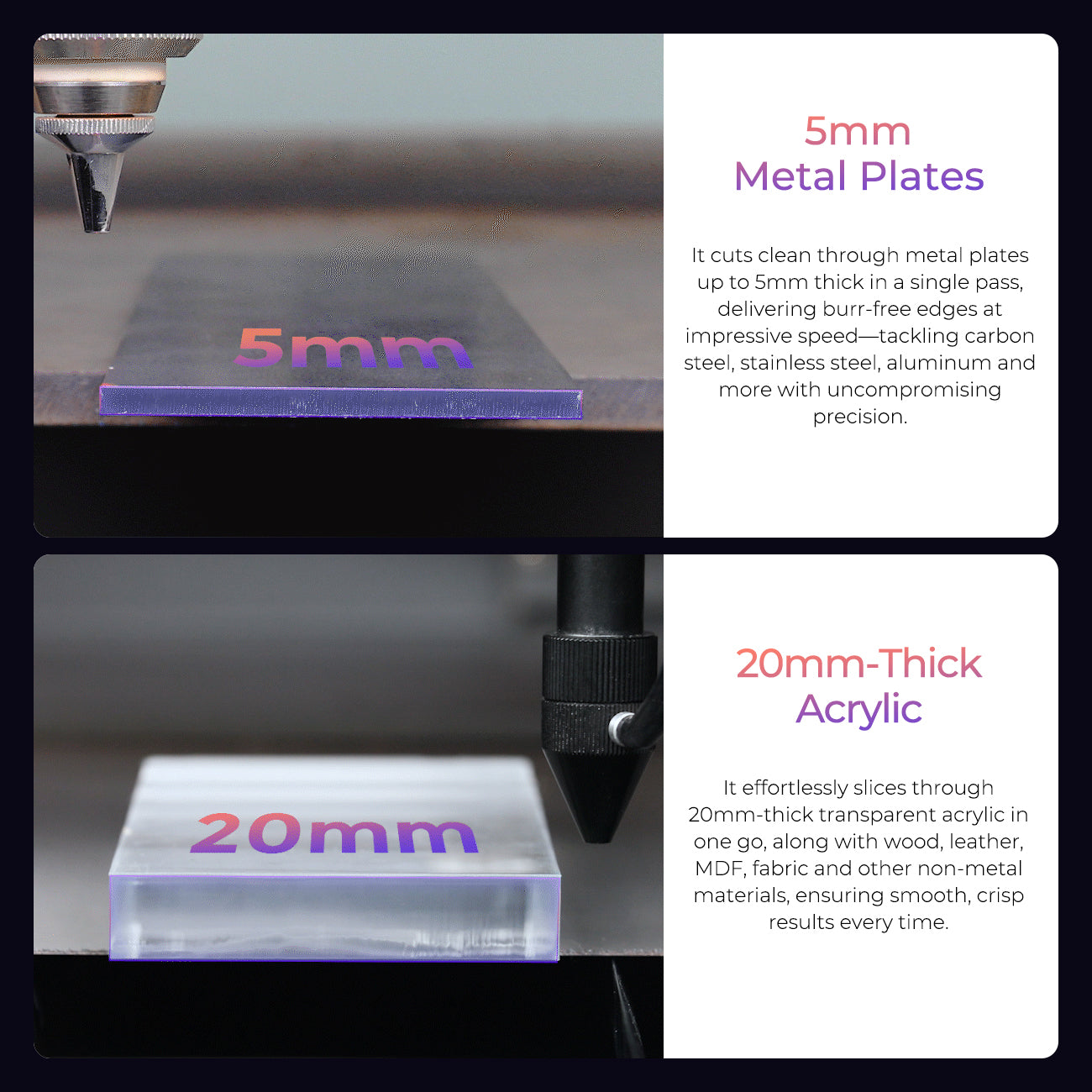

5mm Metal Plates
It cuts clean through metal plates up to 5mm thick in a single pass, delivering burr-free edges at impressive speed—tackling carbon steel, stainless steel, aluminum and more with uncompromising precision.

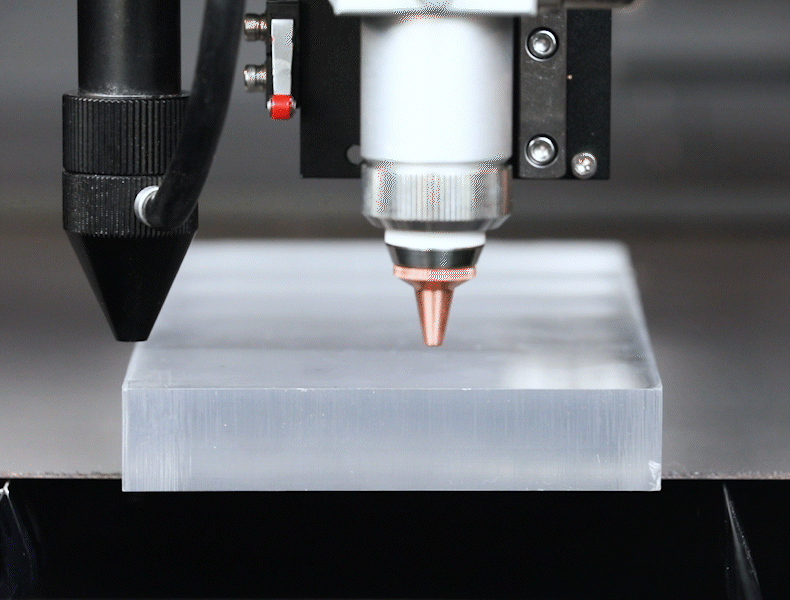

20mm-Thick Acrylic
It effortlessly slices through 20mm-thick transparent acrylic in one go, along with wood, leather, MDF, fabric and other non-metal materials, ensuring smooth, crisp results every time.

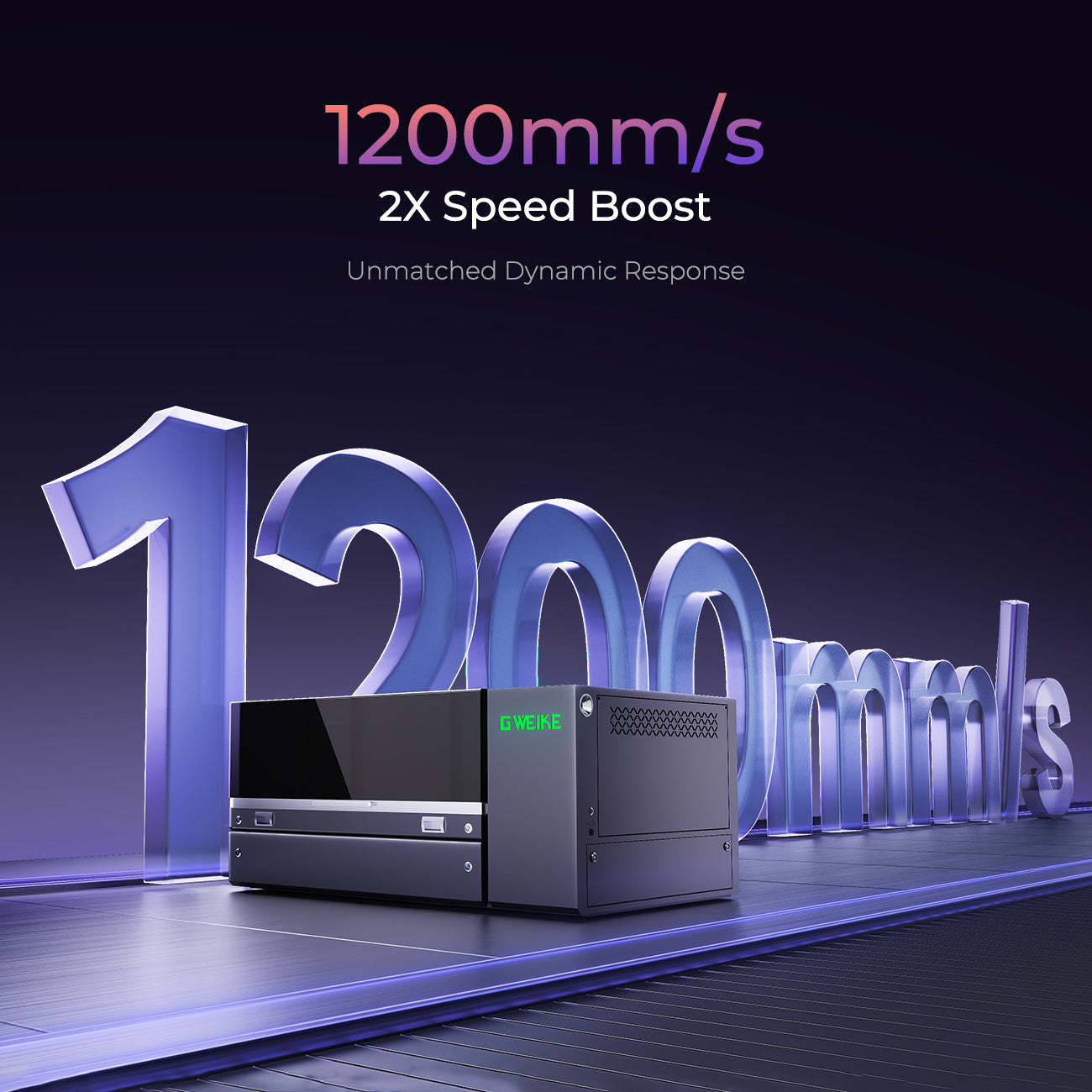

Unmatched Dynamic Response
Equipped with top-tier servo motors and linear guides, our MCore laser cutter redefines speed and accuracy. The servo motors boast high dynamic response and an acceleration of 2G, powering lightning-fast, ultra-responsive movements that hit 1200mm/s—slashing processing time and boosting your productivity.
Smart HD Camera
Our 16MP panoramic camera provides distortion-free previews for large-format workpieces and 0.0079-inch micro-precision for intricate crafts. As a dedicated auxiliary positioning tool, it ensures flawless alignment—from massive signage to delicate jewelry—with zero hassle.
0.0079
Inch

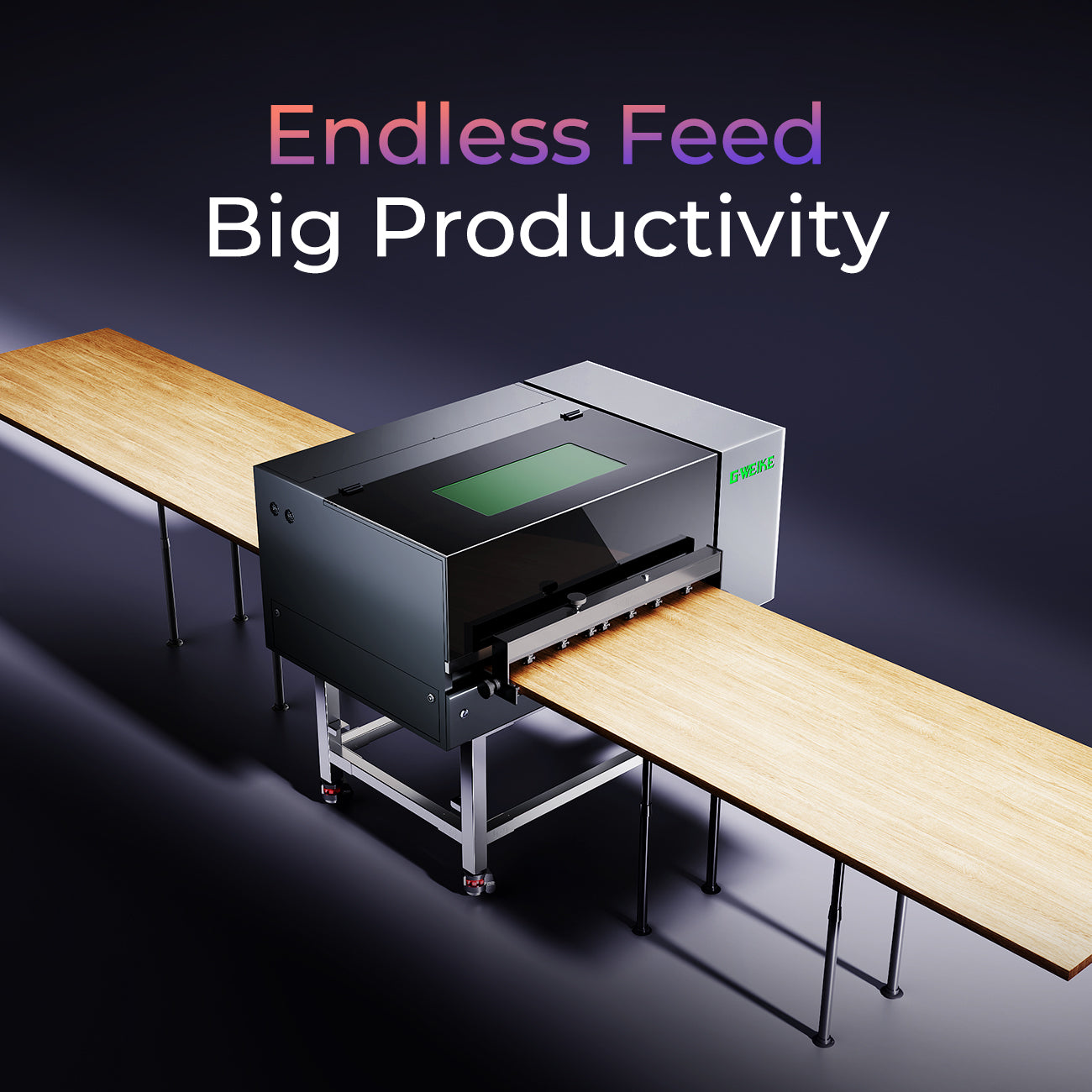

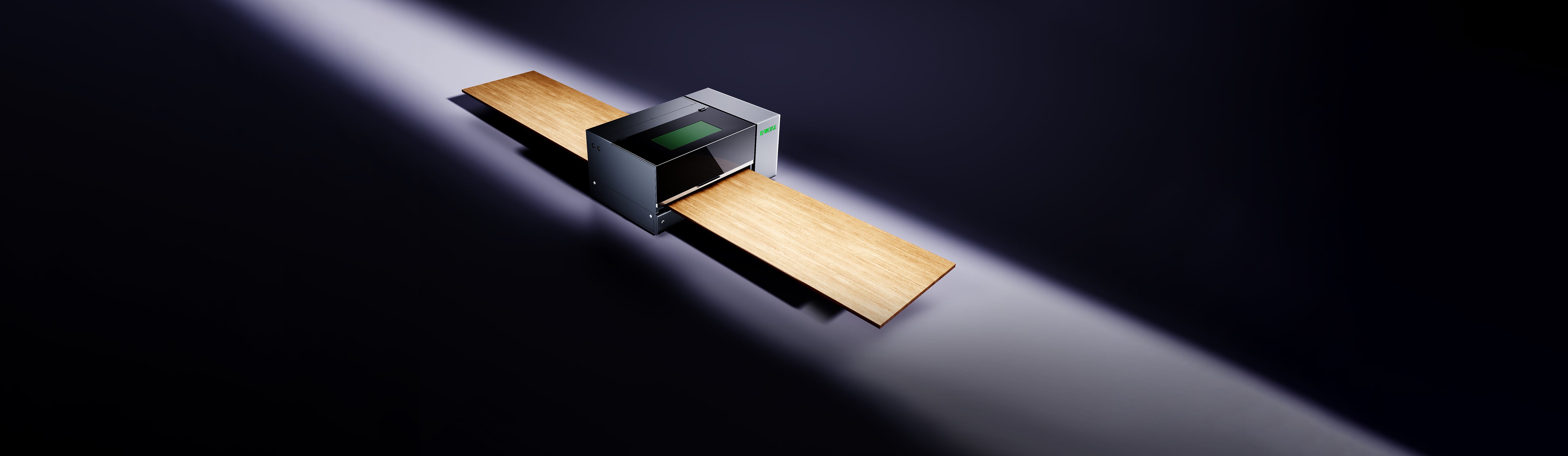

Intelligent Conveyor: Big Material, Big Productivity
The Intelligent Conveyor enables hassle-free feeding of large-format materials, streamlining your workflow for non-stop cutting. No more tedious manual positioning—just load, go, and tackle large-scale projects with ease.
Smarter Software for Effortless Operation
Adopts a curve-fitted toolpath trajectory mode, which — compared with G-code trajectory mode — delivers improvement in speed.

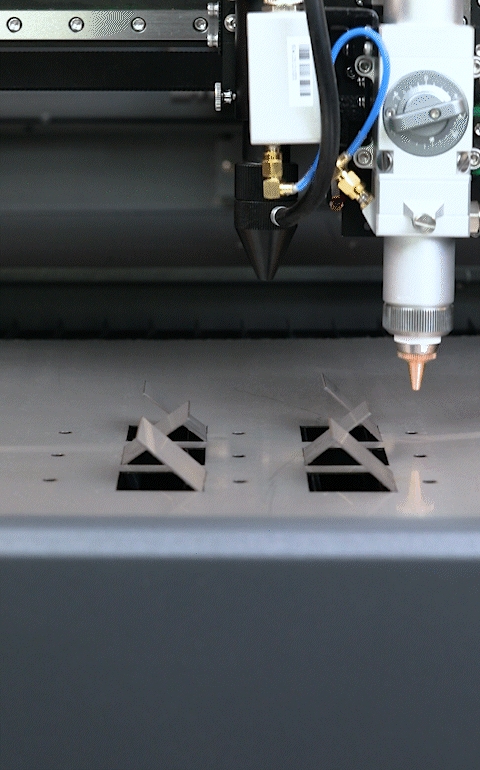

Autonomous Obstacle Avoidance
When encountering obstacles, the path can be automatically adjusted to avoid collisions.
Intelligent Flowing Cutting
The cutting head rapidly jumps between paths instead of returning to origin, ensuring continuous operation.

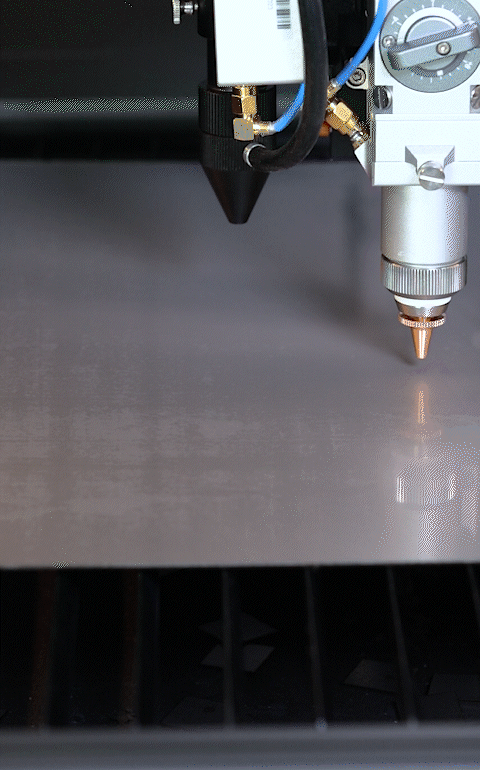

Common Edge
Common-edge cutting shares one line, boosting yield 10-25% and slashing strokes 30-50%.

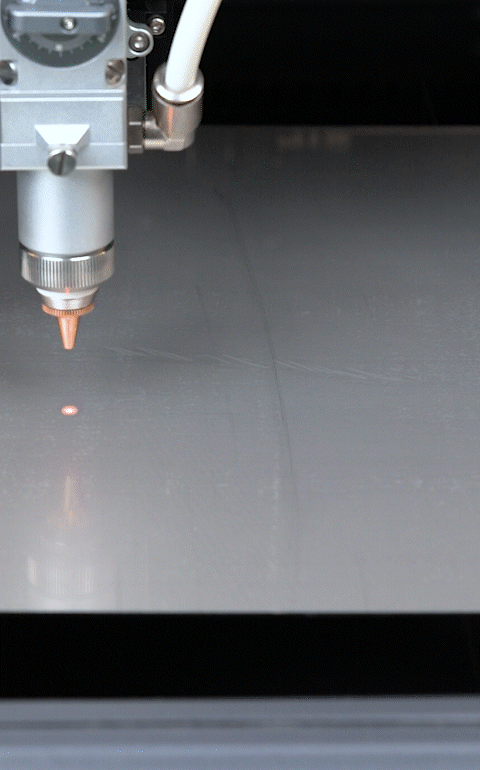

Traceless Micro-jointing
Micro-connections secure thin sheets during complex contour cutting.

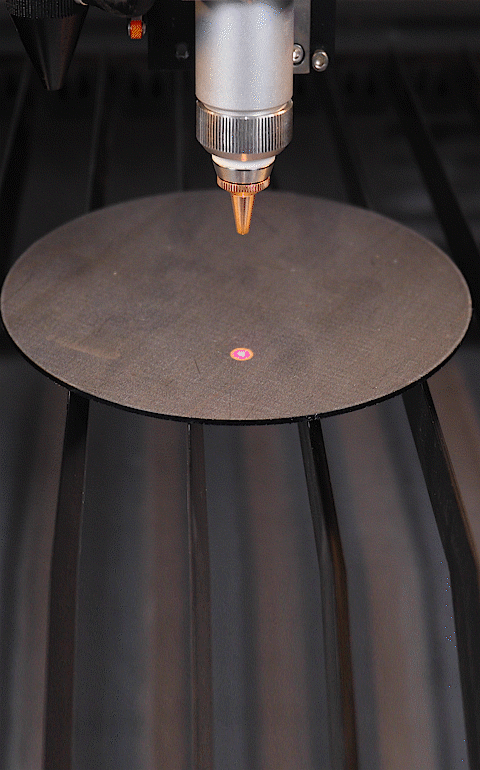

Automatic Edge Finder
The machine automatically detects the position of your material, making the process simple and intelligent.

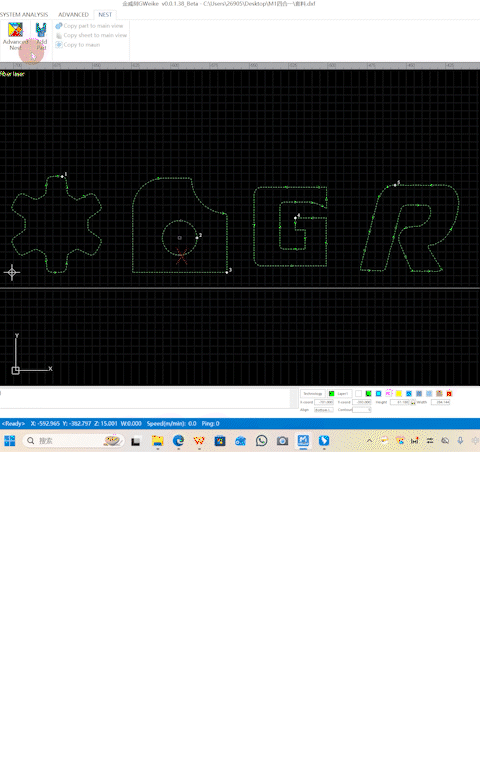

Industrial Nesting Software
Smart algorithms boost sheet utilization by 15-30%, especially for special-shaped parts.
Lifting Platform
Shatters Z-axis limits with height adjustment. Delivers deeper cutting capacity .

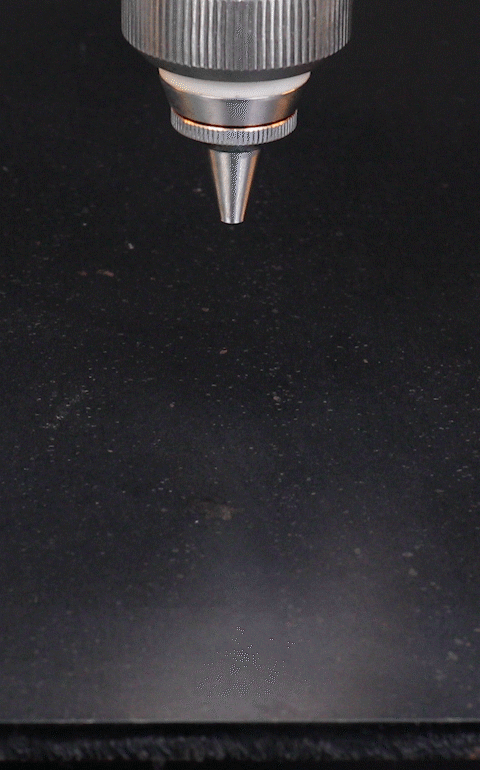

Multi-stage cutting
Incremental penetration for thick plates. Manages heat dispersion for superior edge quality.

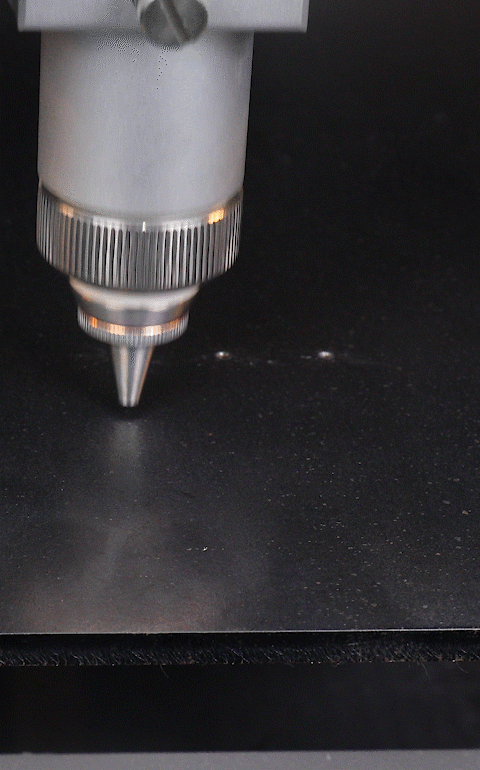

Slag removal
A secondary low-power pass melts and removes bottom dross, eliminating manual grinding for cleaner finished parts.

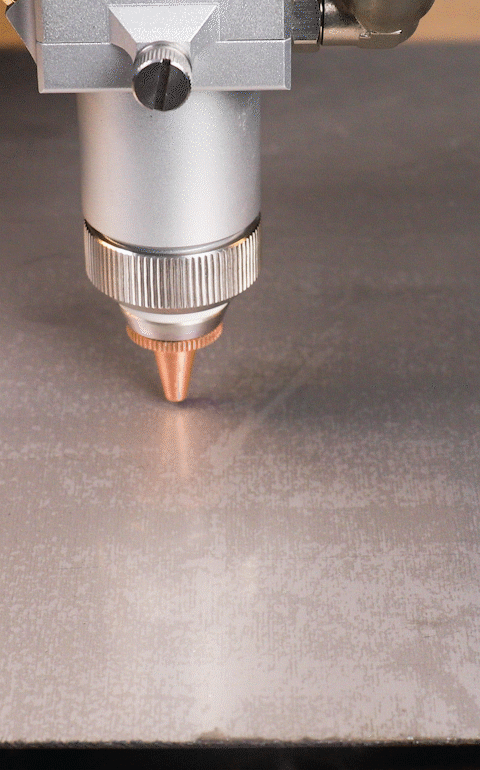

Internal/External lead-in
Controls beam entry. External prevents surface marks; internal ensures burr-free piercing for precision contours.
Advanced Laser Safety Features
Built with a rigorous safety certification to ensure inherently safe operation for eyes and skin. Core protection is enhanced by an OD5+ high-density observation window that blocks over 99.999% of harmful radiation, plus an emergency stop button for instant shutdown—delivering complete control and confidence.
99.999%
Radiation Attenuation
E-STOP
Instant Shutdown

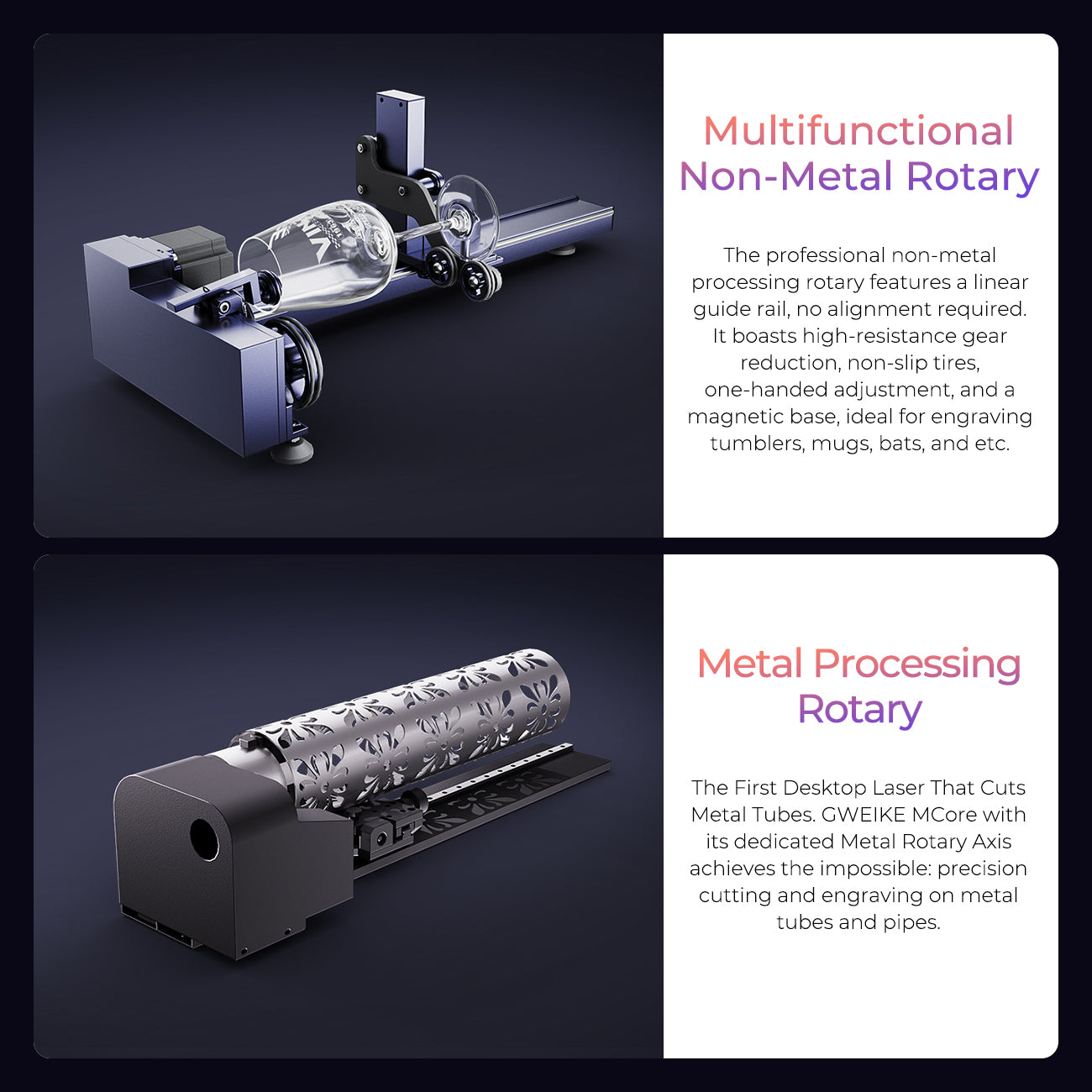

Rotary Processing

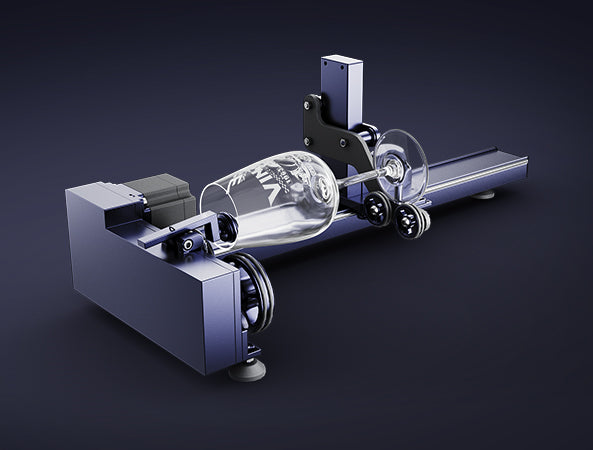

Multifunctional Non-Metal Rotary
The professional non-metal processing rotary features a linear guide rail, no alignment required. It boasts high-resistance gear reduction, non-slip tires, one-handed adjustment, and a magnetic base, ideal for engraving tumblers, mugs, bats, and etc.

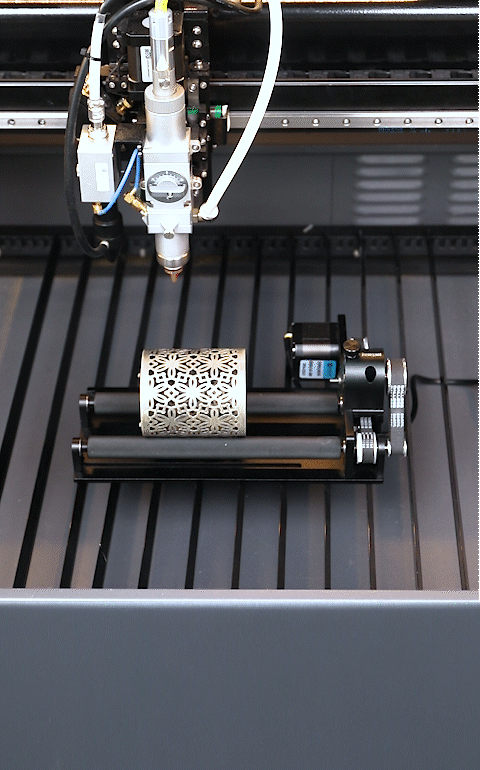

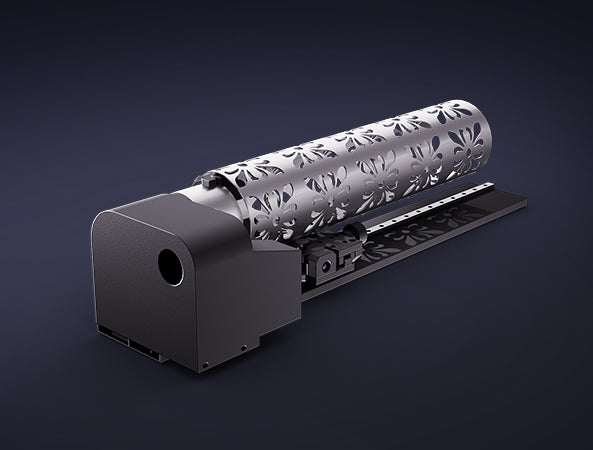

Metal Processing Rotary
The First Desktop Laser That Cuts Metal Tubes. GWEIKE MCore with its dedicated Metal Rotary Axis achieves the impossible: precision cutting and engraving on metal tubes and pipes.

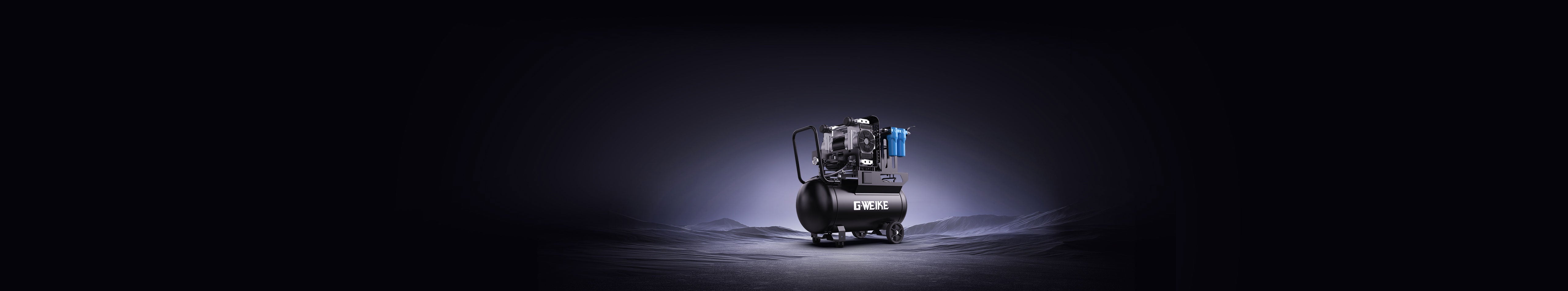

Gweike Air Compressor For High-quality Cutting of all Metals
Redefine simplicity and slash operational costs. The MCore fiber laser cutter unlocks its full gas-free potential when paired with the optional GWEIKE All-in-One Air Supply System.
174Psi
Discharge Pressure
5mm
Max Thickness
This all-in-one compressed air system (1.2MPa, 220V) combines an oil-free compressor, dryer, and multi-stage filtration. It delivers a 174 psi air jet for cutting up to 5 mm thick, rapidly clears molten metal to reduce preheating time, and maintains cutting speed on carbon steel. Clean, dry air ensures effective slag removal and superior edge finish with surface roughness ≤3.2 μm.
174Psi
Discharge Pressure
5mm
Max Thickness
Specifications
Catagory
- Laser Type
400W Fiber laser + 80W CO₂ Laser
- Working Area
28.0”x 16.2”(711mm*411mm)
- Processing Mode
Laser Cutting/Laser Engraving
- Max.Working Speed
47.2 ips(1200 mm/s)
- Max.Laser Cutting Capacity(Metal)
0.20″(5 mm) in ONE PASS
- Max.Laser Cutting Capacity(Acrylic)
0.79"(20 mm) in ONE PASS
- Max.Processing Height
4"/100mm
- Motion Accuracy
0.00039"(0.01mm)

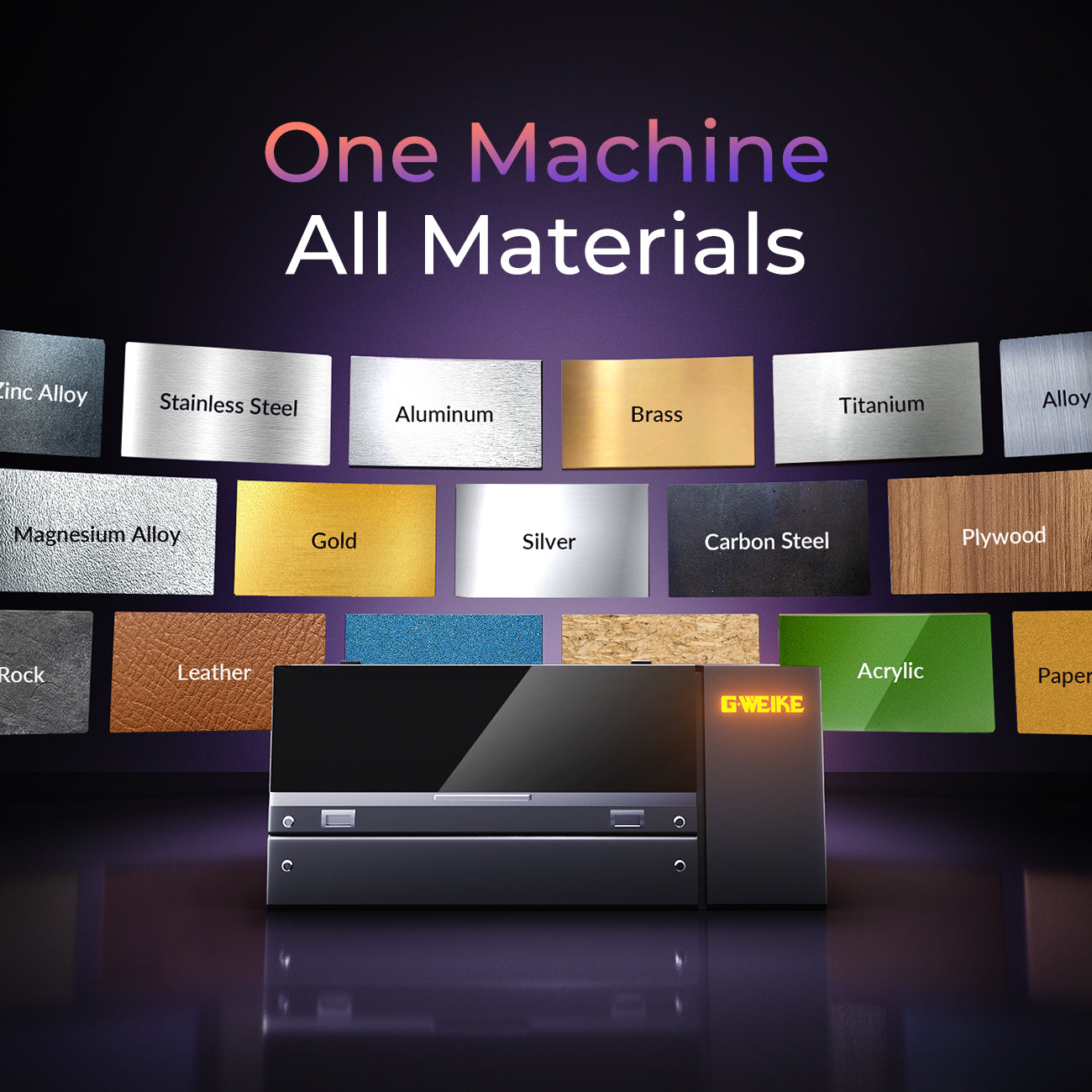

- Supported Materials
Laser Cuttable:
Metal: Stainless steel, Carbon steel, Brass, Aluminum, Titanium alloy and more.
Nonmetal: Wood, Acrylic, Fabric, Leather and more.
Laser Engravable: Metal, Glass, Bamboo, Ceramic and more.
- Size
50.39″ × 31.50″ × 22.91″（1280*800*582mm）
- weight
286.6 lb(135kg）
- Supported Software
Mlaser
- Operating System
Windows
- Connection Method
Ethernet Port
- Supported Files
SVG/DXF/JPG/JPEG/PNG/BMP/TIF
- Almake Compatibility
Yes
- Built-in Camera
SkyView Panoramic Camera
- Positioning Method
Camera Positioning
- Easy Operation
Yes
FAQ
Cuttable: Metals (Stainless steel, Carbon steel, Aluminum, Brass) and Non-metals (Wood, Acrylic, Leather, Fabric, MDF).
Engravable: Metals (Stainless steel, Carbon steel, Aluminum, Brass) and Non-metals (Wood, Acrylic, Leather, Fabric, MDF, Glass, Ceramic, Bamboo, and more)
Mcore itself includes a standard air pump suitable for non-metals, but high-quality metal processing traditionally requires specific gases: nitrogen (N₂) for a clean finish on stainless steel and oxygen (O₂) for faster cutting of carbon steel. As a cost-effective and simplified alternative for operations focused on materials like carbon steel up to 4mm thick, the optional GWEIKE All-in-One Air Supply System provides clean, dry compressed air (174 PSI) to enable "gas-free" cutting, which reduces operational complexity and cost while delivering acceptable quality for many applications, though the edge quality on stainless steel with compressed air typically does not match that achieved with nitrogen.
The MCore machine supports a wide range of standard power supplies. Specifically, it supports 110V 60Hz in the United States and 220V 50Hz in Europe, requiring only a single-phase power connection in both regions. Additionally, the machine can be configured or ordered to support other standard single-phase voltages and frequencies (such as 100V, 230V, etc.) to suit operation in other global regions. Please contact sales for specific configuration options based on your location.
The GWEIKE MCore laser cutter comes with a standard one (1) year warranty. Deposit customers who participate in the current launch promotion will benefit from an extended warranty of two (2) years.
Laser Source: 400W Fiber Laser + 80W CO₂ Laser.
Work Area: 27.99" × 16.18" (711mm × 411mm).
Max Speed: 1200 mm/s (47.2 ips).
Cutting Capacity: Cuts up to 5mm (0.20") metal and 20mm (0.79") acrylic in a single pass.
Positioning: Features a 16MP panoramic Smart HD Camera for precision alignment.
Software: Operates on Mlaser software (Windows), supporting files like SVG, DXF, JPG, PNG.
Yes, with optional rotary attachments:
Non-Metal Processing Rotary: For cylinders and cones (like wine glasses).
Metal Processing Rotary: For precision cutting and engraving on metal tubes and pipes.
