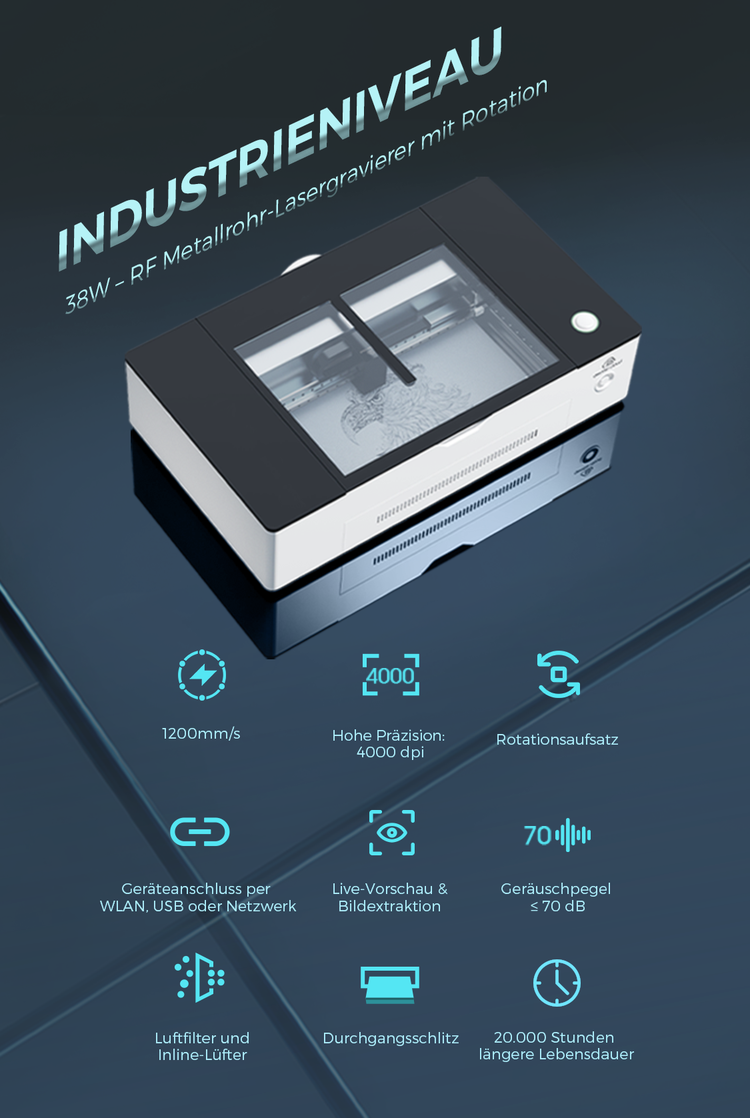

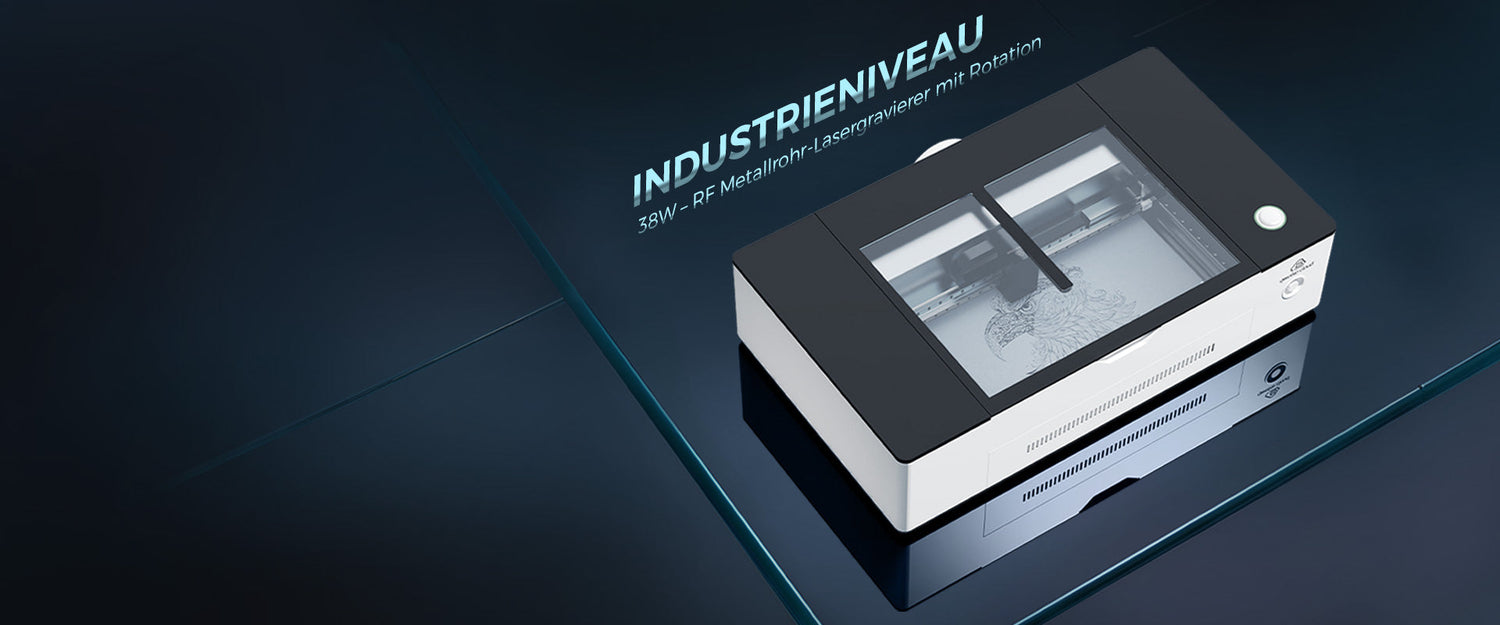

Gweikecloud RF – Rotations-Laserschneider & -gravierer für Metallrohre

Gweikecloud RF – Rotations-Laserschneider & -gravierer für Metallrohre

Normaler Preis $4,299.00
Verkaufspreis $4,299.00 Normaler Preis
Sale Ausverkauft
Product Parameters
×
Laser Power High precision RF 38W
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Processing Area 20.08" (510mm)*11.8" (300mm)
Maxinum working height 20"(51mm)
Rotary Engraving diameter 30mm-74mm
Rotary Engraving Length ≤245mm
Camera support
Weight 45.6kg
software Gweikecloud Web Based,Gweikecloud Offline, Lightburn
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Power Supply AC 110-220V±10%,50-60Hz
Gross Power 550W
Noise Rating ≤70dB
Max. Carving Speed 1200mm/S
Precision 0.0004" (0.01mm)
Laser Tube Life 20000hours
Payments: PayPal Visa Mastercard American Express Discover JCB Klarna
Der Versand wird an der Kasse berechnet.
  • 5MP-Kamera, Vorschaudesign und visuelle Positionierung auf dem Material.
  • Leiser Ventilator , Dezibel ≤ 70 dB.
  • Live-Vorschau und Bild-Extraktion.
  • 100 % vorinstallierte 1-Schritt-Schnellmontage.
  • WLAN/USB/Internet-Kabelanschluss.
  • Lightburn/Gweikecloud Online/Gweike Offline-Steuerung.
  • Alle Module und Hauptkomponenten sind aus hochfestem Metall gefertigt.
Vollständige Details anzeigen

Material: MDF

Leistung: 80 %

Geschwindigkeit: 600 mm/s

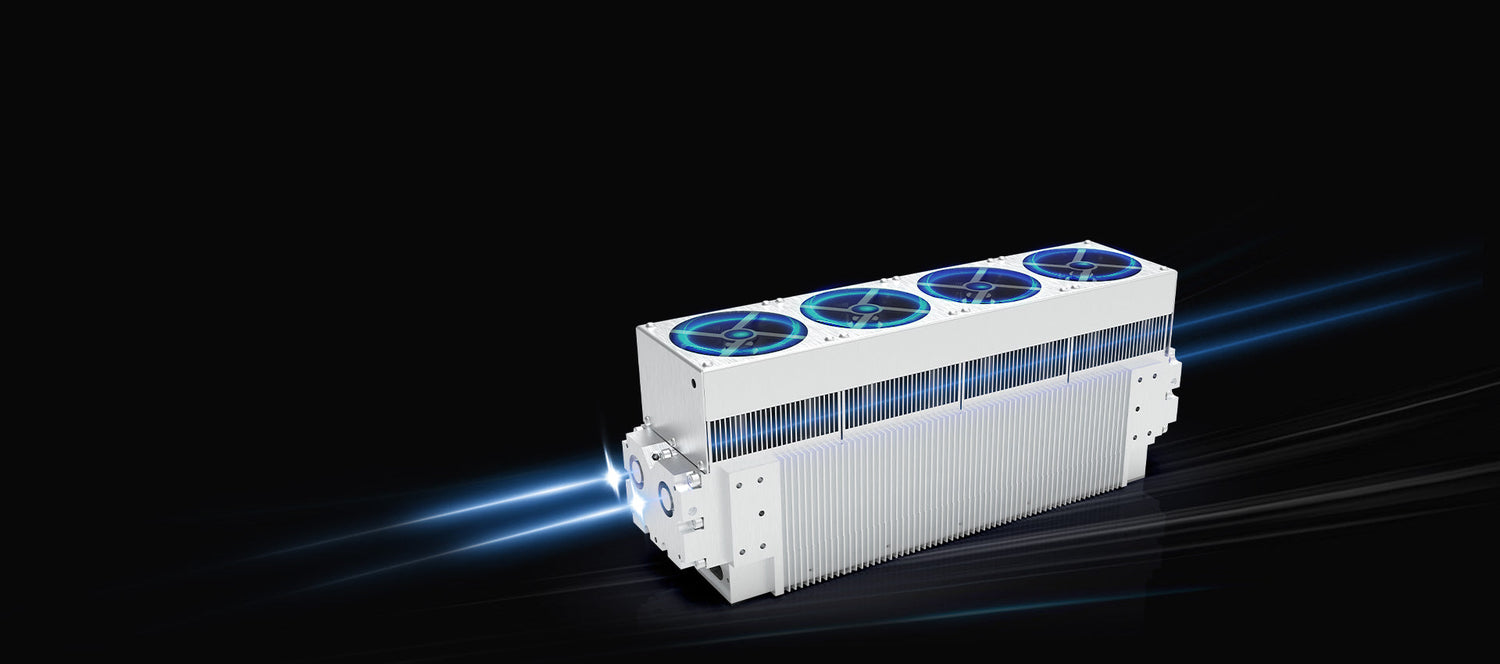

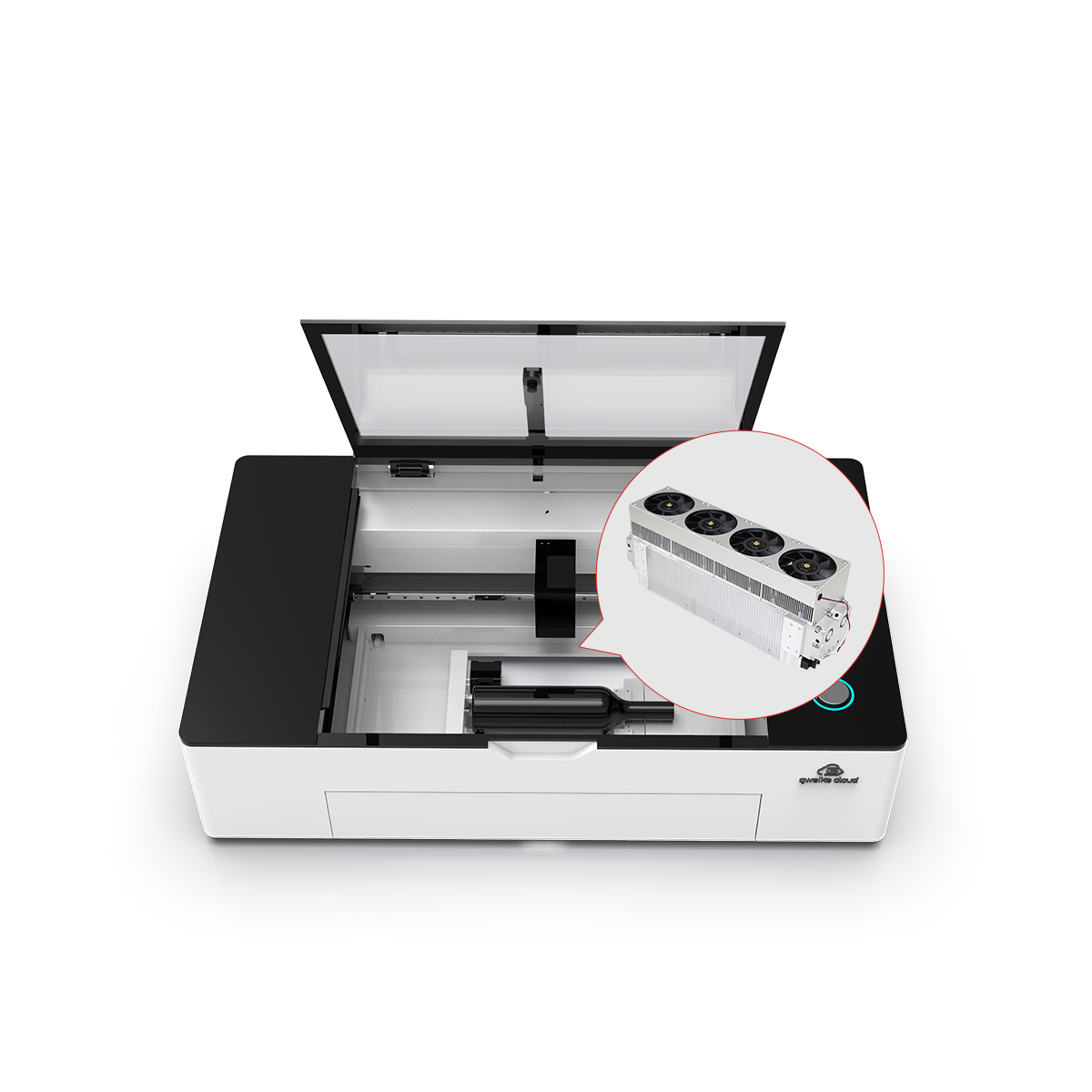

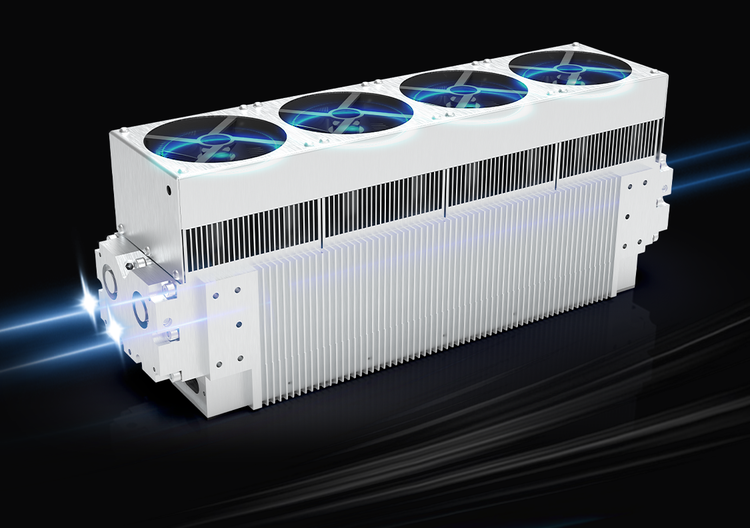

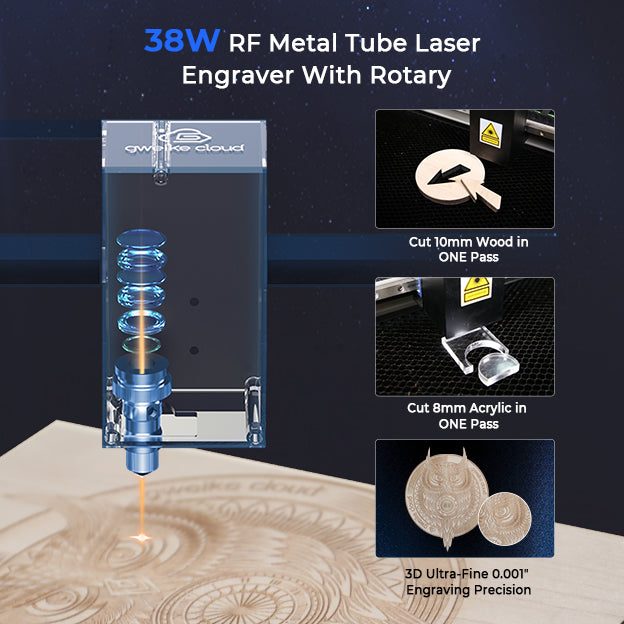

  • Der Gweikecloud RF, ein Frequenzröhren-Lasergravierer für Metallrohre, hat eine Spitze von 0,07 mm,
  • d. h. mehr als 3 Mal feiner als ein Glasrohr für höchste Präzision.
  • Er bietet eine kleine thermische Diffusionsfläche und kann sehr filigrane Arbeiten gravieren/schneiden.
  • Der CO₂-Glasröhren-Lasergravierer hat einen größeren Lichtpunkt von 0,25 mm und bietet dadurch eine geringere Genauigkeit,
  • einen instabilen Laser (ungleichmäßige Lichtintensität, manchmal gar kein Licht), hat eine große Wärmediffusionsfläche,
  • schmilzt und schwärzt an den Schnitträndern und bietet eine schlechte Graviergenauigkeit.

Bringen Sie Glanz in Ihre Kreation mit Materialien für Gweike Cloud

Machen Sie Acryl, Holz, Gummi, Leder, Metalle und vieles mehr zu Kunst
  • Glas
  • Beschichtungsmaterial
  • Sperrholz
  • Lebensmittel
  • Gummi
  • Acryl
  • Papier
  • Leder
  • Stein

Industrielles Rahmendesign

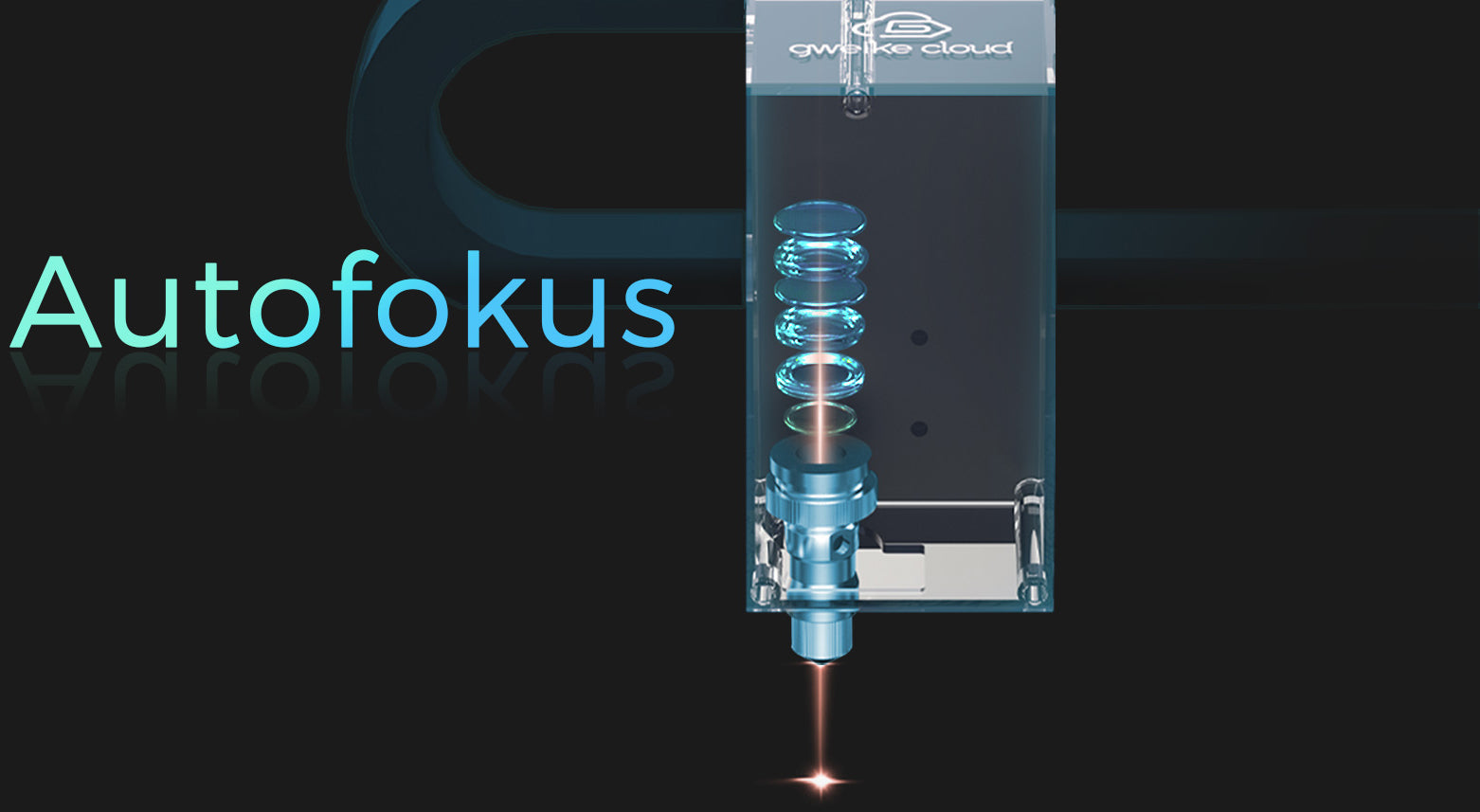

Einfach zu fokussieren, präzise und schnell

Einfach zu fokussieren, präzise und schnell

Abluftreinigung

Die Windgeschwindigkeit wird deutlich verbessert und das Windvolumen ist größer. Rauch und Abgase lassen sich leichter entfernen. Lösen Sie effektiv die durch den Produktionsprozess verursachte Gasretention.

 Geräuschunterdrückung

Beim normalen Drucken hat Gweike Cloud einen durchschnittlichen Geräuschpegel von etwa 70 dB (A). Ausgestattet mit einem viel leiseren Lüfter. Die Geschwindigkeit kann automatisch an die Echtzeit-Temperatur angepasst werden, wodurch der Geräuschpegel um ca. 16 dB (A) [3] verringert wird, sodass Sie sich richtig auf die Herstellung konzentrieren können.

What Other Advantages?

3D-Gravur

Das Gerät kann auf kugelförmigen, schrägen und gekrümmten Oberflächen und auf Objekten verschiedener Höhe gravieren. Es kann 3D-Bilder auf Diamanten, Holz, Acryl und vielem mehr erstellen.

  • 3D-Gravur
  • Design mit Zufuhr an der Geräteunterseite
  • Cloud-Betrieb online
  • Online-Designkatalog

echnische Daten – Zusammenfassung

  • Technische Daten
  • Gweike Cloud vs. Glowforge
  • Schnitt- und Gravurmaterial
Lasersystem

Laserleistung 38W

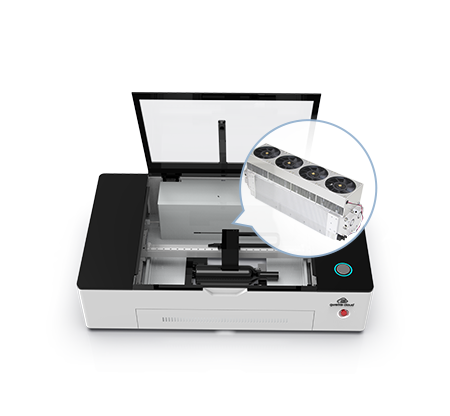

Laser-ModellRF Metall Laser Tube

Lebensdauer 20.000 h

Schutzeinrichtung Klasse I (FDA-zertifiziert)


Arbeitsbereich

Fläche des Arbeitstisches 20,08" (510mm) x 11,47" (290mm)

Max. Werkstückhöhe (ohne Wabeneinsatz) 2" (51mm)

Oberfläche des Arbeitstisches Schwarz (Spezielle Oberflächenbehandlungstechnik hilft, Brandflecken oder Verfärbungen zu vermeiden)


Materialbearbeitung

Max. Schnitzgeschwindigkeit 1200mm/s

Schnitzgenauigkeit 0,001” (0,01mm)

Geräuschpegel ≤70dB

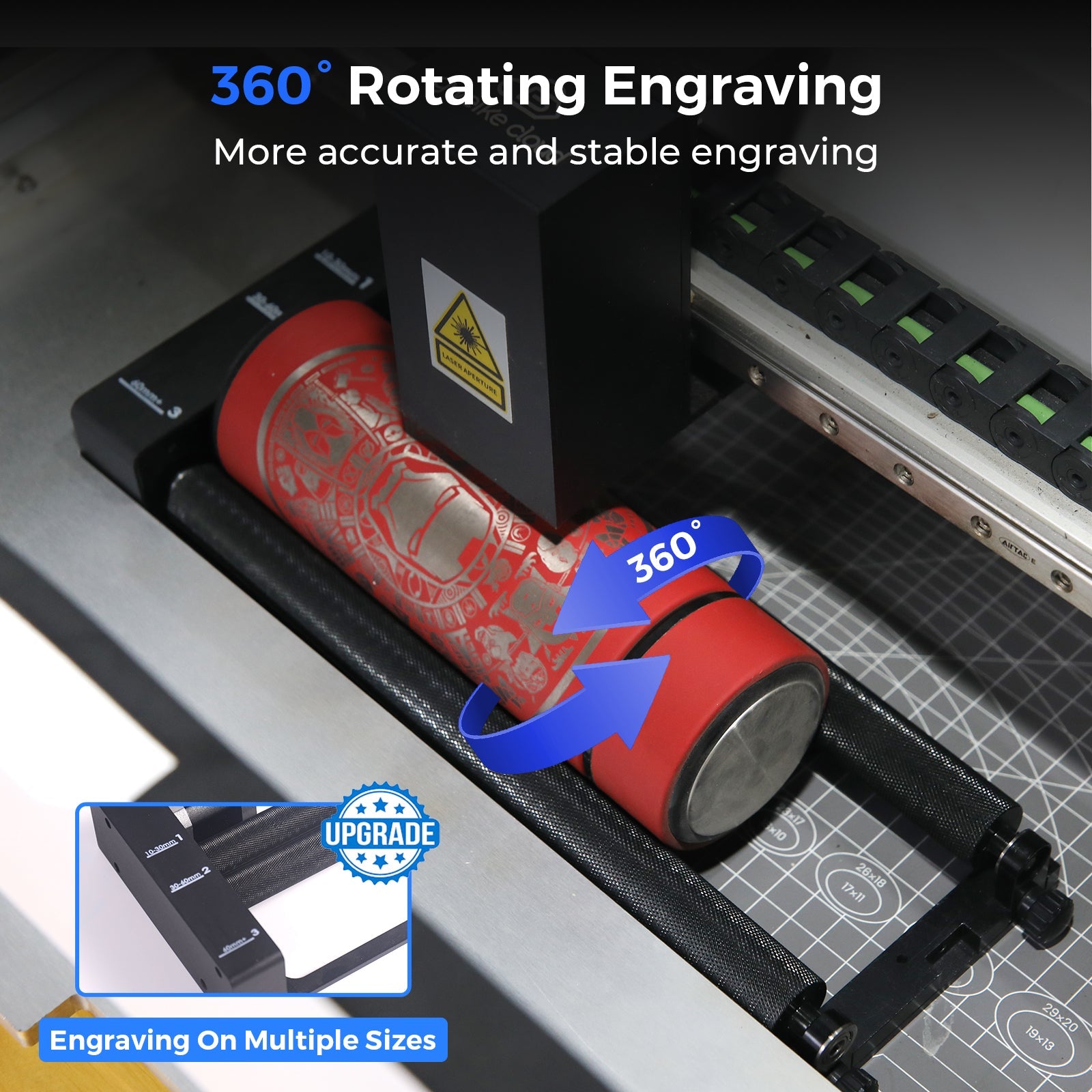

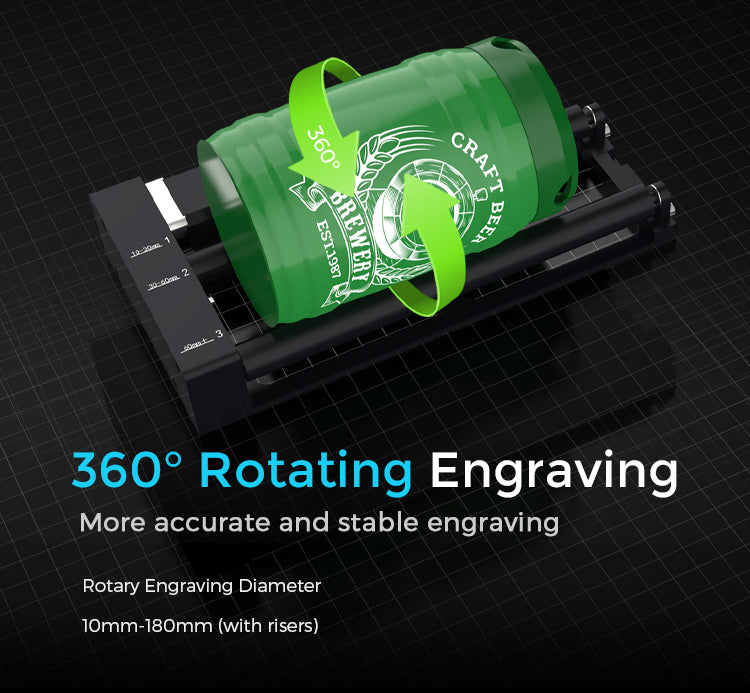

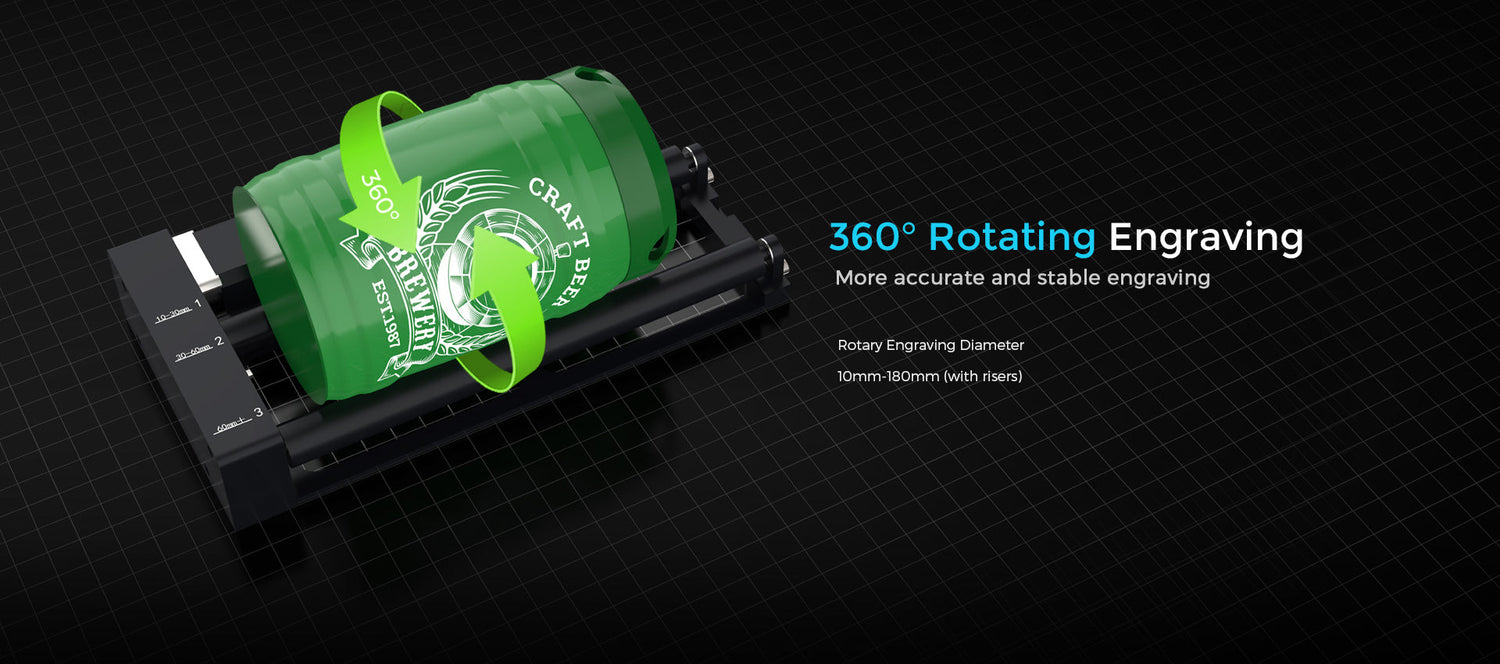

Rotationsvorrichtung

Durchmesser bei Rotationsgravur 30-74mm

Länge bei Rotationsgravur ≤245mm


KI-Kamerainformationen

Kamera Unterstützung


Softwareanforderungen

Steuerungssoftware Gweikecloud Webbasiert, Gweikecloud Offline, Lightburn

Verbindung/Übertragung WLAN, USB, Ethernet

Unterstützte Dateitypen SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2 usw.

Design-Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw usw.


Umgebungsanforderungen

Wechselstrom AC 110-220V±10%,50-60Hz

Energieverbrauch (ohne Lüfter) 550W

Außerbetriebstemperatur 0~45°C

Relative Luftfeuchtigkeit 5~90°C

Betriebsumgebungstemperatur 0~35°C


Gewicht und Abmessungen

Maschinenabmessungen 38,2"x22,2"x9,2" (970mmx565mmx234,5mm)

Gewicht 45.6kg

Lieferzeit 114x73x36cm

Gesamtgewicht 58kg

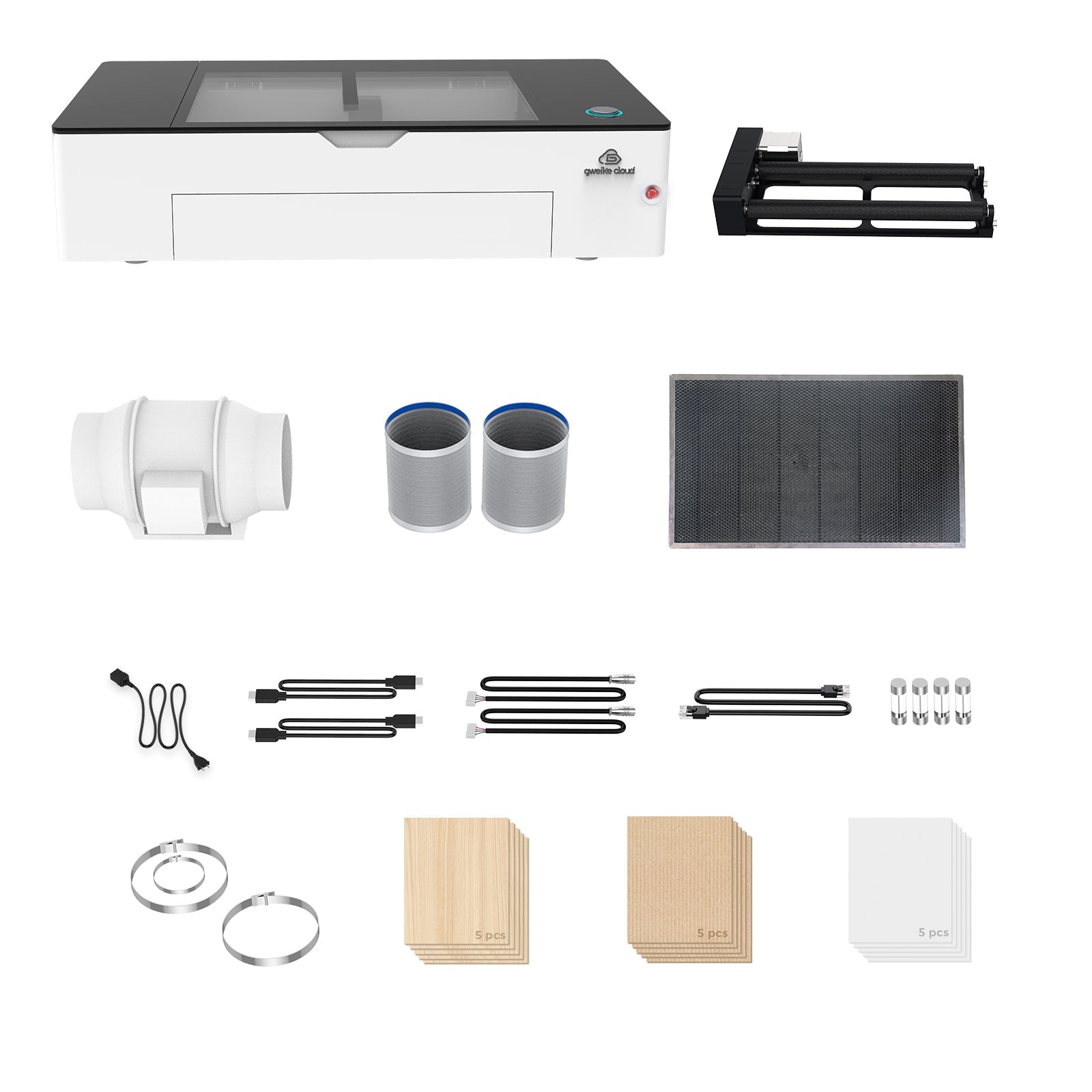

Unterstütztes Zubehör

Kameras: 5 MP ultra-Weitwinkelkamera & Makro

Eingebaute Luftpumpe

Luftkühler

Duale, hocheffiziente integrierte LED-Streifen


Meinungen von Gweike-Cloud-Nutzern

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Shannon
RF Laser

Ordered the RF laser in early June and received it in Miami in July. Customer service was excellent all the way through the process, including helping with a delivery problem from the local shipping company who became a problem as they would show up to deliver when I wasn't home and I never knew what day they were coming. Customer service at Gweikecloud helped resolve the issue.

This is my first Laser Engraver. I'm still learning to master it but have created some beautiful products. Customer service again is first class (a WhatsApp Group Chat) and they are fast to answer any and all questions.

Some in the USA might have reservations about ordering a laser from China, but I can say customer service has been better than many US companies. Don't let that keep you from considering this engraving machine.

M
Martin Stefko

This is excellent device I like rotary attachment to grave my Mead bottles. Bee sweet home

d
david hagen
well constructed laser, focusing is overly complicated

The laser is built very well and so far is very accurate. However, the focusing is complicated. You have to subtract the thickness of the material from some number then move focus the laser the difference. Using lightburn to get get to focus you need is not intuitive. So for 3mm plywood, I set the focus to 12.8. It would be nice if the controlling software did all the math for you. The laser should know how far away the lens is from the base, what the focus distance is from the lens to the material surface. I don’t know how far the focus distance is. Basically the focusing is complicated with this laser and not intuitive and how it translate into a focus distance in lightburn. It seem designed around using gweike material with a barcode on it, using it without that and lightburn is complicated to focus.

Second there is not much space for thicker material.

I don’t know why there is an exhaust fan i. the exhaust port since you hook up to an external fan anyways it seems redundant and an impediment to air flow.

It is a very good laser it just has some quirks particular in the focusing that make it more complicated then it needs to be when using it with lightburn.

T
Tony G
RF Metal Laser

Everything was as described on Sexy Cyborg youtube.
The benefit of the RF tube is no water to deal with and worry about freezing (I am in Maryland) but, cutting is more limited. Weight the pro's & cons of each for your use.
The only thing that would be nice a galv bed so you can use magnets to hold down material. The bed that shipped with the unit is Alum.
Have not used the Gweike Cloud since the location of the machine does not have internet.
Works great with Light Burn.

C
Customer
Good

What are you cutting tonight? Sipping a margarita and cutting magnets over here for my upcoming vendor event!

good! The FR type‘s cutting speed is more than twice, and higher engraving precision.
