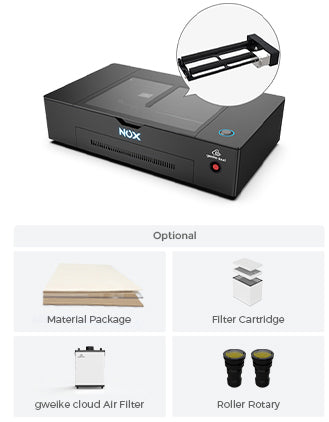

gweike cloud NOX CO2 Laser Cutter & Engraver

gweike cloud NOX CO2 Laser Cutter & Engraver

Normaler Preis $2,899.00
Verkaufspreis $2,899.00 Normaler Preis
Sale Ausverkauft
30 days delivery/Free Shipping for US/EU/UK/CA/AU
Product Parameters
Laserleistung CO2 laser 45W
Maschinenabmessungen 38,2" x 22,2" x 9,2" (970 mm x 565 mm x 234,5 mm)
Fläche des Arbeitstisches 20,08" (510 mm) x 11,8" (300 mm)
Maximale Arbeitshöhe 20"(51mm)
Durchmesser bei Rotationsgravur 30mm-74mm
Länge bei Rotationsgravur ≤245mm
Kamera support
Gewicht 42.6kg
software RDWorks(provided); LightBurn(supported)
Verbindung/Übertragung WLAN, USB, Ethernet
Unterstützte Dateitypen SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Stromversorgung 110–220 V ± 10 %, 50–60 Hz
Bruttoleistung 550W
Geräuschpegel ≤70dB
Max. Schnitzgeschwindigkeit 500mm/s
Präzision 0.001” (0.025mm)
Lebensdauer der Laserröhre 10.000 h
Pre-sale: Ship from 5/15
Payments: PayPal Visa Mastercard American Express Discover JCB Klarna
  • 1. Built-in Water Chiller, ≤70dB
  • 2. Air Exhaust Fan, ≤70dB
  • 3. Built-in Air Compressor, ≤70dB
  • 4. 5MP Camera, Preview Design and Visually Position.
  • 5. Honeycomb Panel, 20.08" (510mm)*11.8" (300mm)
  • 6. Material Package:Basswood*5, Acrylic*5, Cardboard*5
Vollständige Details anzeigen

Gweikecloud NOX

Time: 2Min 16s


Time: 9Min 34s

Sparkle Your Creation with Gweike cloud Materials

make art out of acrylic, wood, rubber, leather, metals and more
  • Plywood
  • Coating Metal
  • Acrylic
  • Rubber
  • Food
  • Paper
  • Leather
  • Rock


Uses the industry standard layout, editing, and control software, LightBurn, to ‘talk’ directly to your laser without the use of additional software.

Live Camera Preview

Adopt 5mp wide-angle camera to precisely locate the position of the design on the material, monitor the working condition of the machine in real time intelligently extract the pattern from the surface of any object, and cut or engrave out the recognized pattern.

Super Air Assist

Effective laser Lens Protection / Neat Clear Cutting / Super Noisecancellng / Noise reduction by 20dB

Build-in Water Chiller

Boost production speed by optimizing process temperatures.
Energy Savings & Quiet Operation.

Emergency Stop & Safe for Children

Adopt fully enclosed structural design to give users the best protection. Products are CE-certified, FCC-certified, FDA-certified, all electronic components comply with 3C standard

Set Up In Minutes

Easy installation and ready to use right out of the box. Only need connect the power cord and turn on the power, you can start creating right away.

gweike cloud NOX unboxing

Specs Summary

  • Tech Specs
  • NOX vs RPO
  • Material Cuts & Engraves
Laser System

Laserleistung 45W/50W

Laser Type CO₂ Glass Laser Tube

Lifespan 10000h

Safety Guard Class I (FDA Certified)

Work Area

Work Table Area 20.08" (510mm)*11.8" (300mm)

Max. Workpiece Height(without honeycomb tray) 2''(51mm)

Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)

Materials Processing

Max. Cutting Depth 0.59''(15mm) Basswood

Max. Carving Speed 500mm/s

Carving Precision 0.001” (0.025mm)

Noise Rating ≤70dB

AI Camera Information

Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF

Camera High-resolution Ultra-wide Camera

Number of Pixels (Effective) 5MP

Visible Area 19.29'' x 11.42''

Positioning AI Visual Positioning Error range ≤ 2mm

Software Requirements

Operating Systems Windows/macOS

Control Software RDWorks(provided); LightBurn(supported)

Connection / Transmission Wi-Fi, USB, Ethernet

Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.

Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.

Environmental Requirement

Power AC 110-220V±10%,50-60Hz

Work Consumption (without fan) 550W

Nonoperating Temperature 0~45°C

Relative Humidity 5~90°C

Operating Ambient Temperature 0~35°C

Weight & Dimensions

Processing Area 20.08" (510mm)*11.8" (300mm)

Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)

Weight 45.6kg

Supported Accessories

Cameras: 5 MP ultra-wide-angle camera wide angle & macro √

Water Chiller √

Dual high-efficiency internal LED strips √
